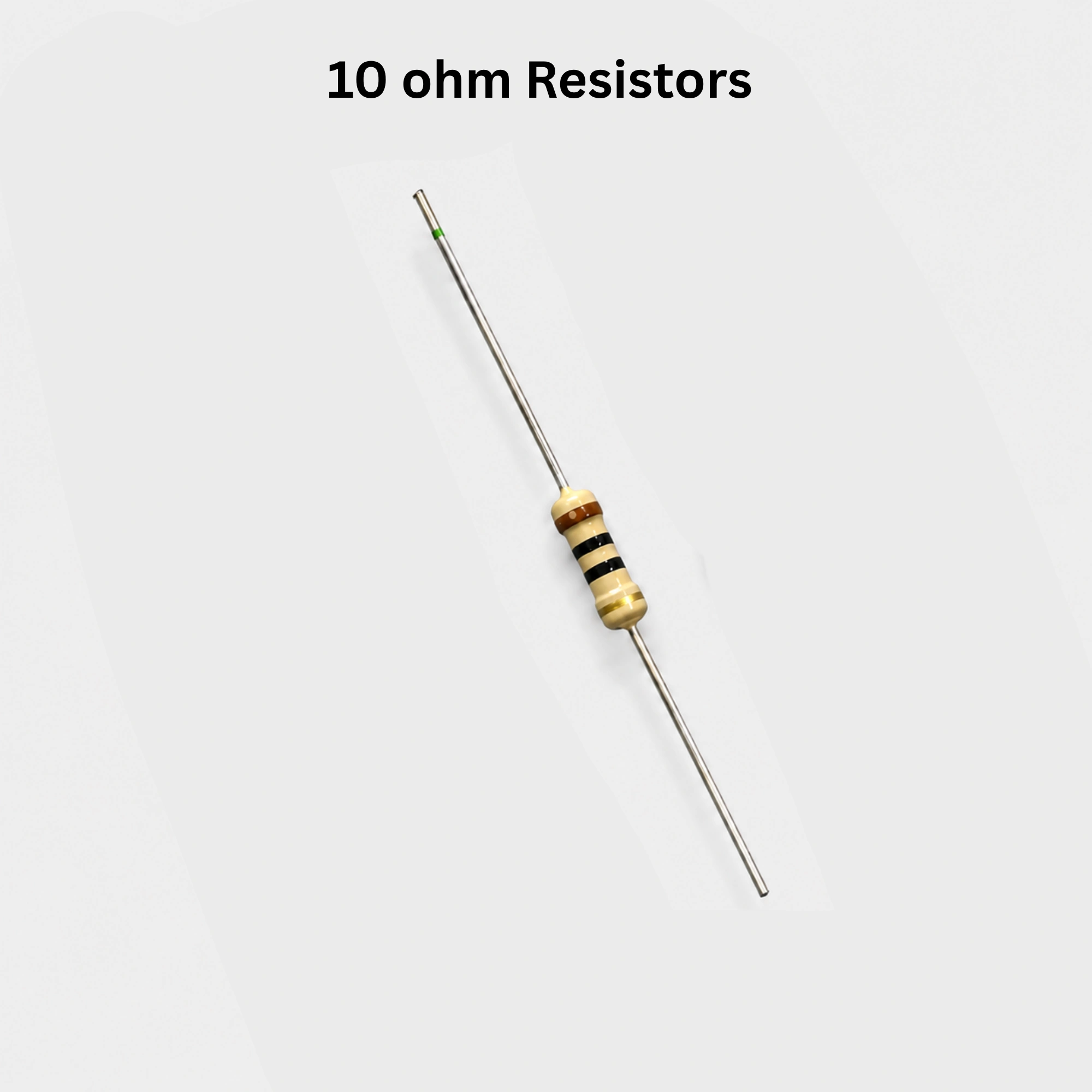

10Ω Resistor (5 Pcs)
10Ω Resistor (5 Pcs)
₹5.00
- Fixed resistance value of 10Ω
- 1/4W (0.25W) power rating
- ±5% tolerance
- Through-hole axial lead package
- Low noise and stable performance
- Flame-retardant protective coating
- Compatible with breadboards and PCBs
The 10Ω Resistor is a fixed through-hole carbon film resistor designed for current limiting, voltage dropping, current sensing (low-power applications), and circuit protection. It is widely used in Arduino projects, breadboard prototyping, power supply circuits, LED drivers, amplifier circuits, and general-purpose electronics.
Features
- Fixed resistance value of 10Ω
- 1/4W (0.25W) power rating
- ±5% tolerance
- Through-hole axial lead package
- Low noise and stable performance
- Flame-retardant protective coating
- Compatible with breadboards and PCBs
Specifications
| Specification | Value |
|---|---|
| Product Type | Fixed Resistor |
| Resistance Value | 10Ω |
| Power Rating | 0.25W (1/4 Watt) |
| Tolerance | ±5% |
| Resistor Type | Carbon Film |
| Temperature Coefficient | ±350 ppm/°C (Typical) |
| Maximum Working Voltage | 250V |
| Maximum Overload Voltage | 500V |
| Mounting Type | Through-Hole |
| Package | Axial Lead |
| Operating Temperature | -55°C to +155°C |
Color Code
| Band | Color | Value |
|---|---|---|
| 1 | Brown | 1 |
| 2 | Black | 0 |
| 3 | Black | ×1 |
| 4 | Gold | ±5% |
Note: The color code Brown – Black – Black – Gold represents a 10Ω resistor with ±5% tolerance.
Applications
- LED current limiting
- Arduino and ESP32 projects
- Breadboard prototyping
- Power supply circuits
- Motor driver circuits
- Audio amplifier circuits
- Current limiting
- Educational electronics
- DIY electronics projects
Advantages
- Stable resistance value
- Low noise operation
- Compact and lightweight
- Easy to solder
- Reliable performance
- Widely used standard value
- Cost-effective
Size
| Specification | Value |
|---|---|
| Body Length | Approx. 6.3 mm |
| Body Diameter | Approx. 2.3 mm |
| Lead Diameter | Approx. 0.55 mm |
| Lead Length | Approx. 28 mm |
| Weight | Approx. 0.2 g |
Package Includes

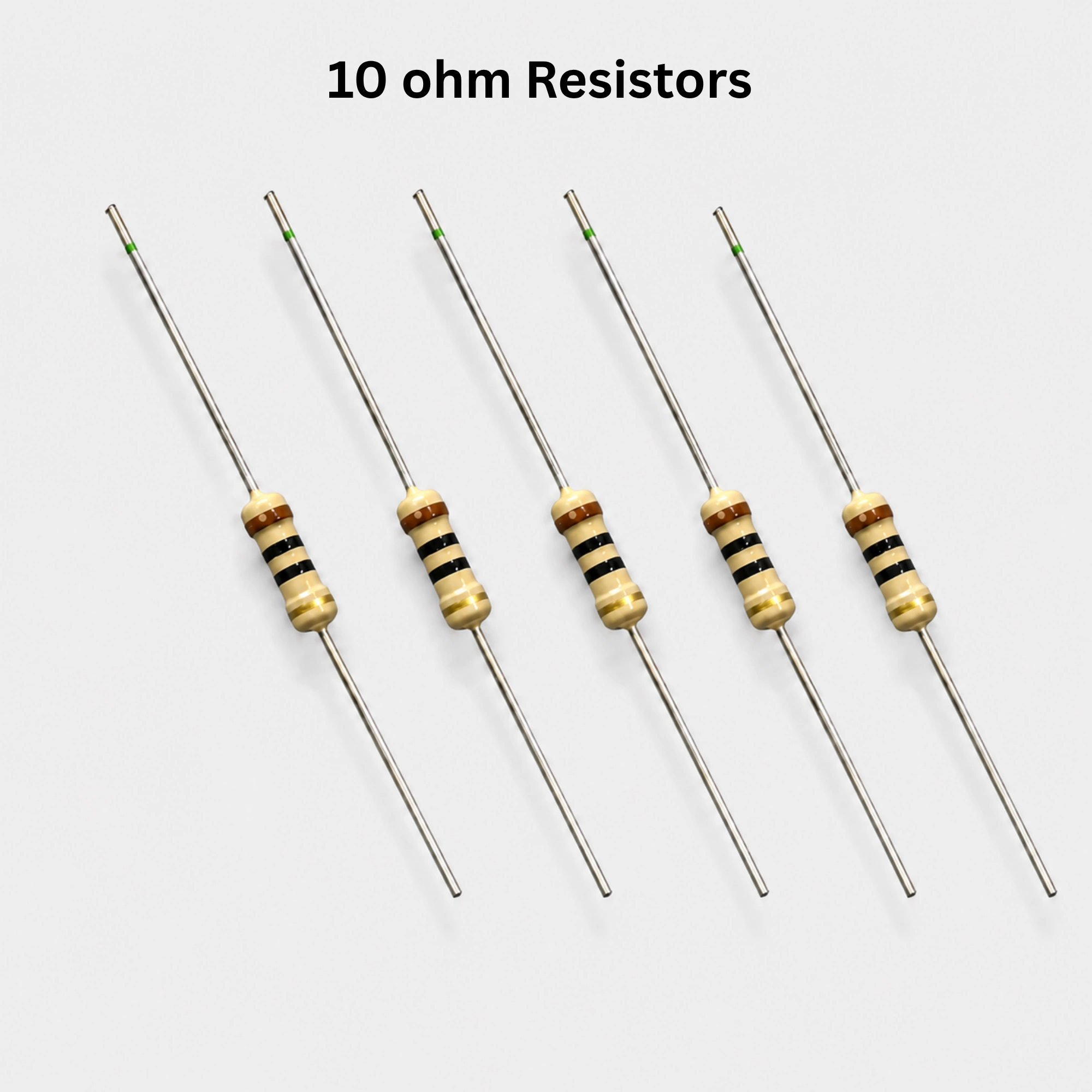

- 5 × 10Ω 1/4W Carbon Film Resistors
Note: The maximum power dissipation of this resistor is 0.25W (1/4 Watt). Ensure the applied voltage and current remain within the resistor’s rated limits to prevent overheating. It is suitable for general-purpose electronic circuits, LED current limiting, and low-power current-limiting applications.
