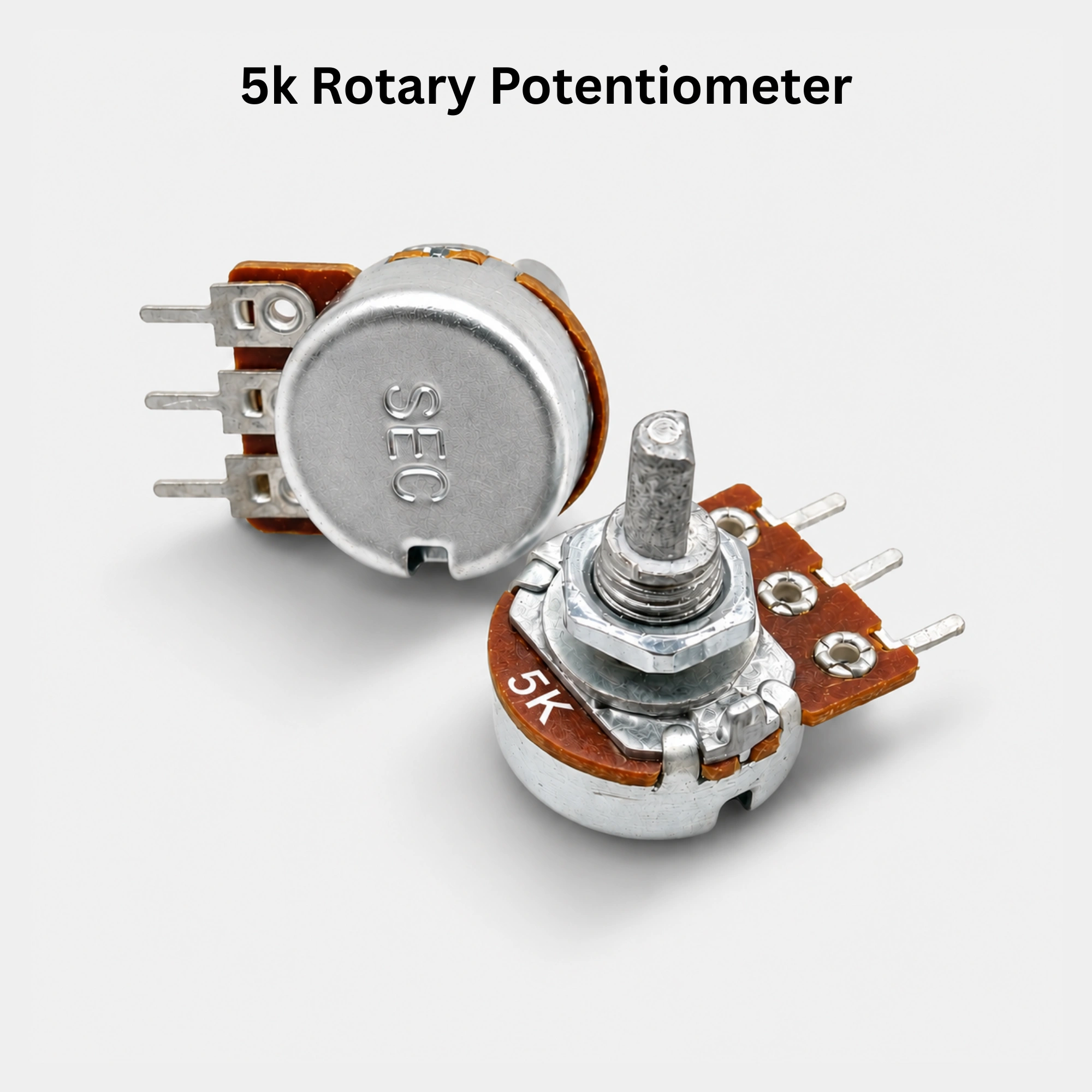

The 5K Rotary Potentiometer is a variable resistor designed for adjusting voltage, current, signal level, and other circuit parameters. It features a smooth rotary shaft, three terminals, and a durable metal body suitable for panel mounting.
Features
- Resistance value: 5KΩ
- 3-terminal rotary potentiometer
- Smooth rotary adjustment
- Metal body construction
- Metal shaft for reliable operation
- Panel-mountable design
- Compact and easy to install
- Suitable for analog and audio circuits
Specifications
| Specification |
Details |
| Product Type |
Rotary Potentiometer |
| Resistance |
5KΩ (5000Ω) |
| Resistance Code |
502 |
| Number of Terminals |
3 |
| Adjustment Type |
Rotary |
| Shaft Material |
Metal |
| Body Material |
Metal |
| Mounting Type |
Panel Mount |
| Output |
Variable Resistance |
| Application |
Voltage / Signal / Level Control |
Pin Configuration
| Pin |
Function |
| Pin 1 |
Resistance End |
| Pin 2 |
Wiper / Variable Output |
| Pin 3 |
Resistance End |
Pin 2 is the adjustable wiper and provides variable resistance relative to either outer terminal.
Applications
- Audio volume control
- LED brightness control
- Motor speed adjustment
- Voltage adjustment
- Amplifier circuits
- Analog signal control
- Arduino and microcontroller projects
- DIY electronic projects
- Instrument control panels
Advantages
- Smooth and convenient rotary adjustment
- Durable metal construction
- Easy panel installation
- Compact design
- Simple 3-terminal connection
- Suitable for a wide range of electronic applications
Size
Compact panel-mount rotary potentiometer with metal shaft and mounting hardware.
Package Includes
- 1 × 5K Rotary Potentiometer
Note
The potentiometer has a maximum resistance of 5KΩ (5000Ω) between the two outer terminals. The center terminal is the adjustable wiper.
