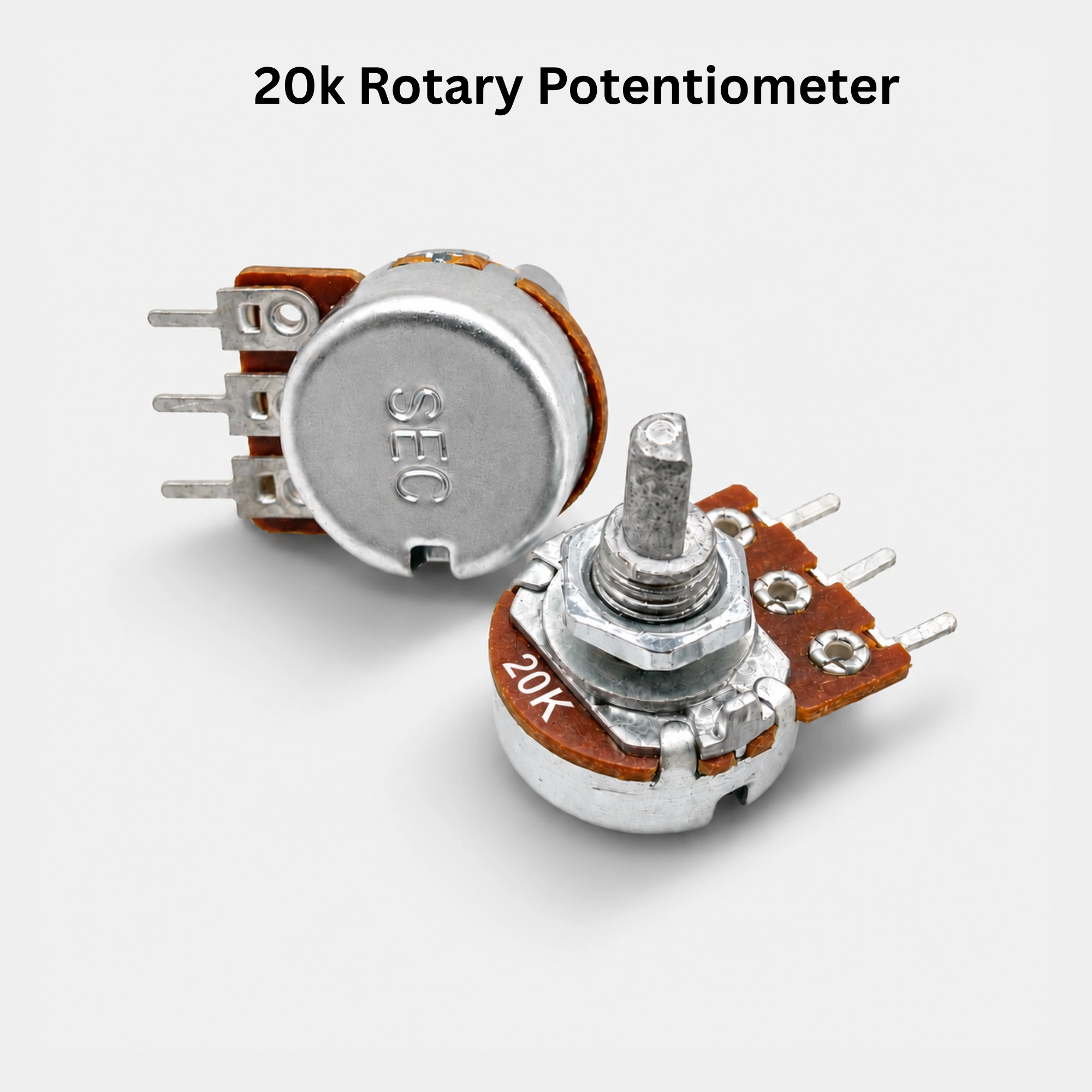

The 20K Rotary Potentiometer is a variable resistor designed for adjusting voltage, current, audio level, and other analog circuit parameters. It features a smooth rotary shaft, three terminals, and a durable metal body suitable for panel mounting.
Features
- Resistance value: 20KΩ
- 3-terminal rotary design
- Smooth rotary adjustment
- Durable metal body
- Metal shaft
- Panel-mountable construction
- Compact and easy to install
- Suitable for analog and audio applications
Specifications
| Specification |
Details |
| Product Type |
Rotary Potentiometer |
| Resistance |
20KΩ (20,000Ω) |
| Resistance Code |
203 |
| Number of Terminals |
3 |
| Adjustment Type |
Rotary |
| Shaft Material |
Metal |
| Body Material |
Metal |
| Mounting Type |
Panel Mount |
| Output |
Variable Resistance |
| Application |
Voltage / Signal / Level Control |
Pin Configuration
| Pin |
Function |
| Pin 1 |
Resistance End |
| Pin 2 |
Wiper / Variable Output |
| Pin 3 |
Resistance End |
Pin 2 is the adjustable wiper and provides variable resistance relative to either outer terminal.
Applications
- Audio volume control
- LED brightness adjustment
- Motor speed control
- Voltage adjustment
- Amplifier circuits
- Analog signal control
- Arduino and microcontroller projects
- DIY electronic projects
- Instrument control panels
Advantages
- Smooth rotary adjustment
- Durable metal construction
- Easy panel mounting
- Compact design
- Simple 3-terminal connection
- Versatile for electronic projects
Size
Compact panel-mount rotary potentiometer with metal shaft and mounting hardware.
Package Includes
- 1 × 20K Rotary Potentiometer
Note
The maximum resistance between the two outer terminals is 20KΩ. The center terminal acts as the adjustable wiper. Use the potentiometer within its rated power and electrical limits.
