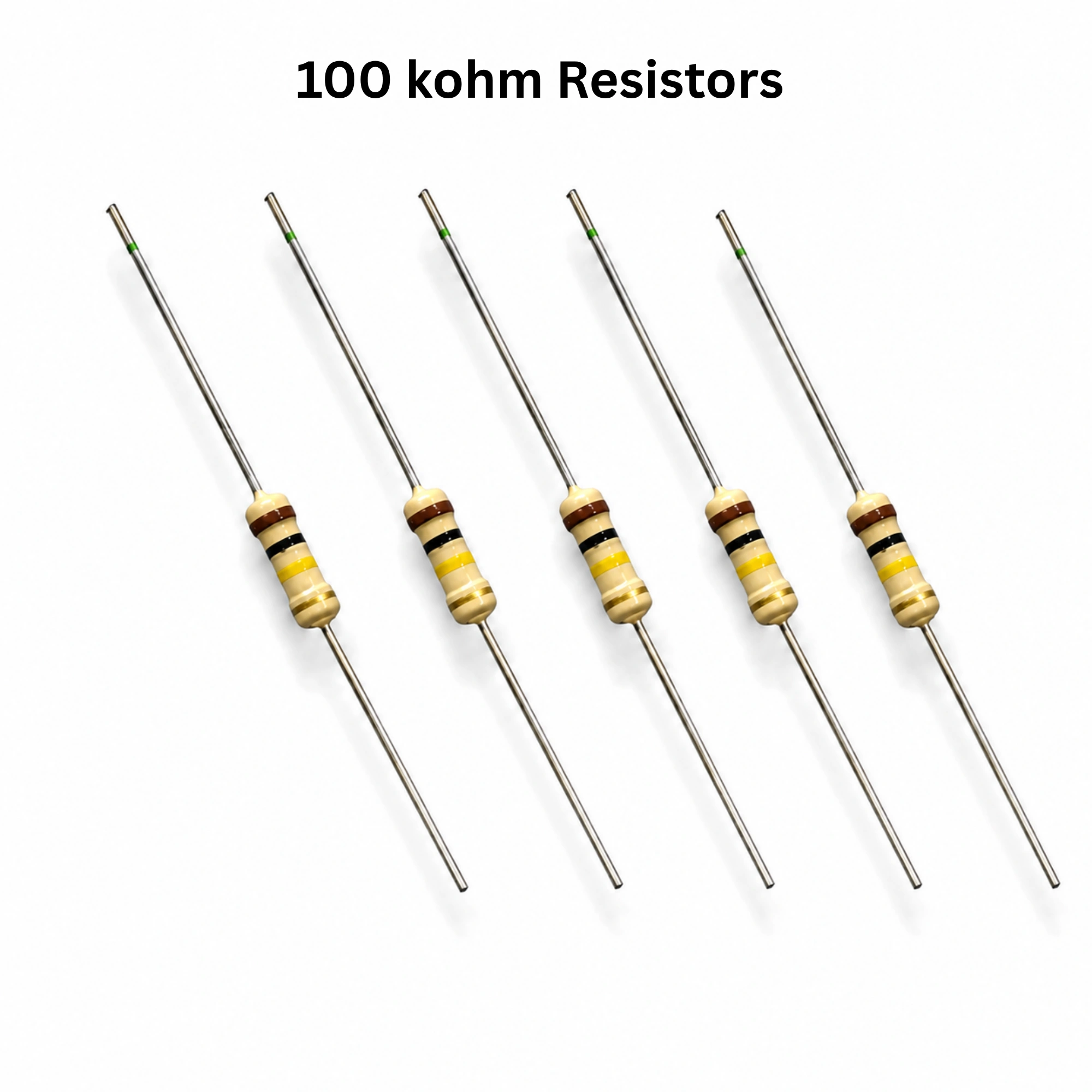

The 100kΩ (100,000 Ohm) Resistor is a fixed through-hole carbon film resistor designed for voltage division, pull-up/pull-down circuits, transistor biasing, timing circuits, and signal conditioning. It is widely used in Arduino projects, breadboard prototyping, PCB designs, audio circuits, sensor interfaces, and DIY electronics.

Features

• Fixed resistance value of 100kΩ
• 1/4W (0.25W) power rating
• ±5% tolerance
• Through-hole axial lead package
• Low noise and stable performance
• Flame-retardant protective coating
• Compatible with breadboards and PCBs

Specifications

Color Code

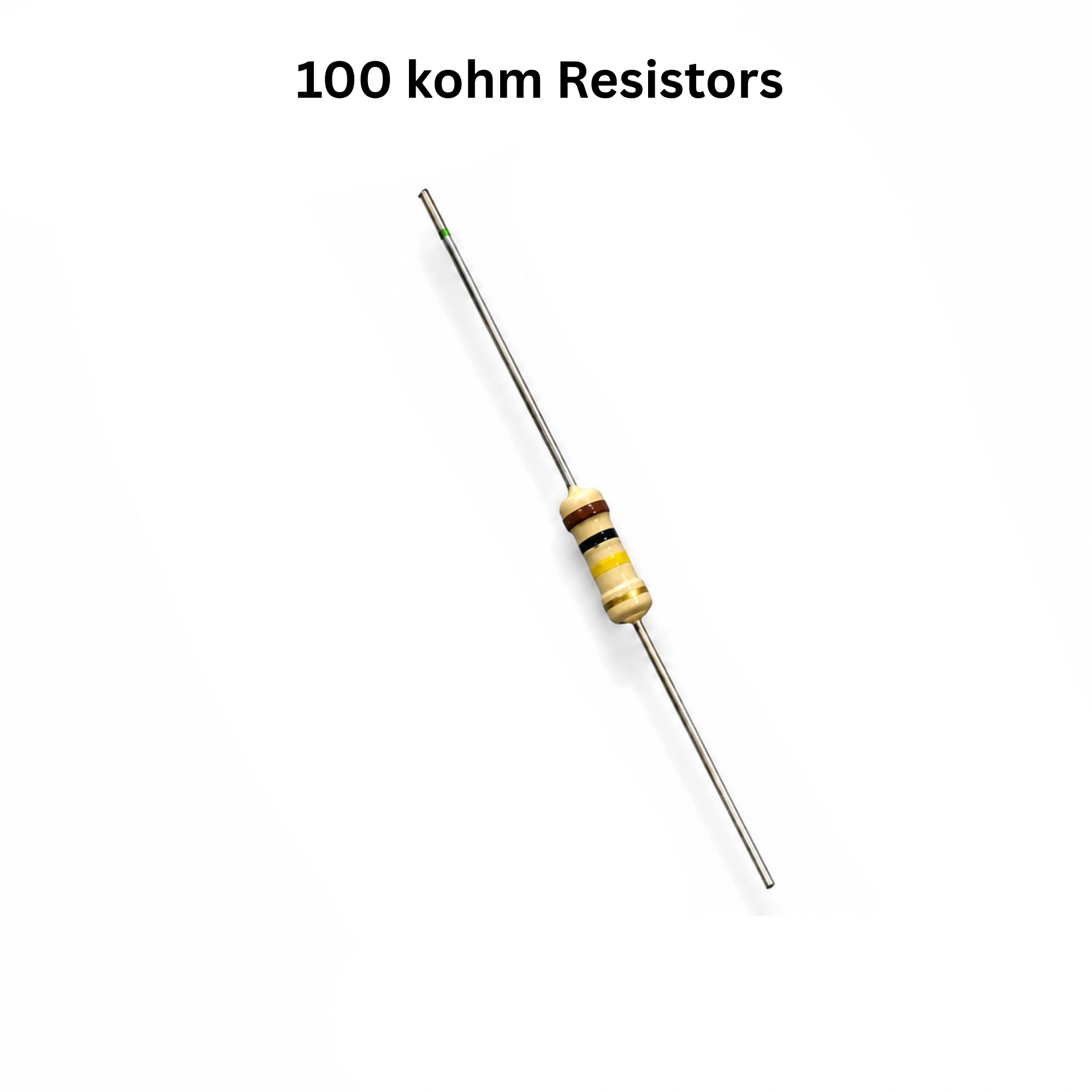

Note: The color code Brown – Black – Yellow – Gold represents a 100kΩ resistor with ±5% tolerance.

Applications

• Pull-up and pull-down resistors
• Voltage divider circuits
• Transistor biasing
• RC timing circuits
• Arduino and ESP32 projects
• Sensor interface circuits
• Audio amplifier circuits
• Breadboard prototyping
• DIY electronics projects

Advantages

• Stable resistance value
• Low noise operation
• Compact and lightweight
• Easy to solder
• Reliable performance
• Widely used standard value
• Cost-effective

Size

Package Includes

• 5 × 100kΩ (100,000Ω) 1/4W Carbon Film Resistors

Note: The maximum power dissipation of this resistor is 0.25W (1/4 Watt). Ensure the applied voltage and current remain within the rated limits to prevent overheating. The 100kΩ resistor is commonly used for pull-up/pull-down networks, RC timing circuits, transistor biasing, analog input stabilization, and general-purpose electronic applications.
