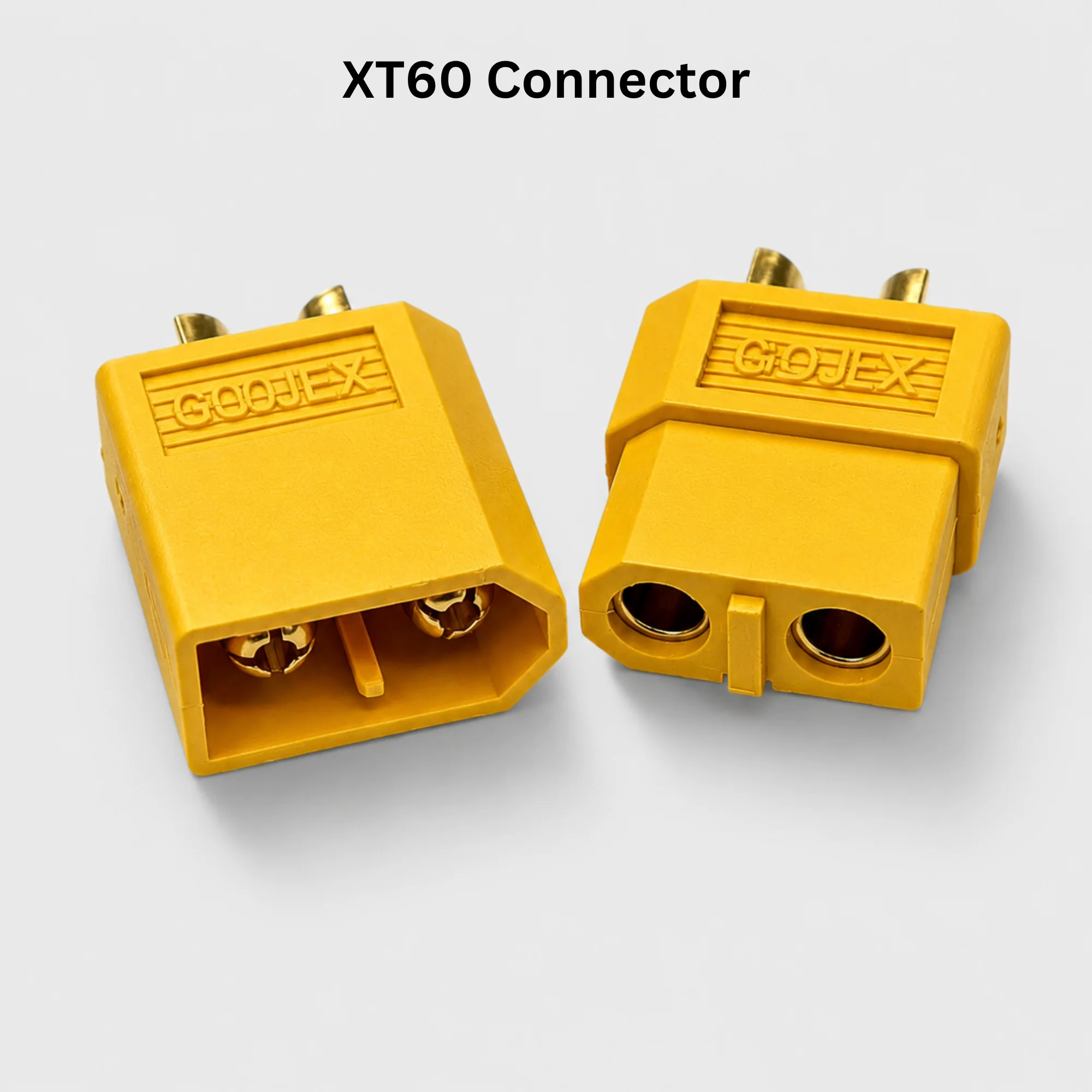

XT60 Connector (Male & Female Pair)
₹99.00
- Full Name: XT60 Male & Female Power Connector
- High-current carrying capability
- Gold-plated brass contacts for low resistance
- High-temperature nylon housing
- Secure anti-spark connection design
- Polarized connector prevents reverse polarity
- Easy to solder
- Durable and reusable
The XT60 Connector is a high-current 2-pin electrical connector widely used in RC models, drones, LiPo batteries, battery packs, robotics, electric vehicles, and DIY electronics. Featuring gold-plated bullet contacts housed in a durable high-temperature nylon casing, the XT60 connector provides a secure, low-resistance, and reliable power connection for high-current applications.
Features
- Full Name: XT60 Male & Female Power Connector
- High-current carrying capability
- Gold-plated brass contacts for low resistance
- High-temperature nylon housing
- Secure anti-spark connection design
- Polarized connector prevents reverse polarity
- Easy to solder
- Durable and reusable
Specifications
| Specification | Value |
|---|---|
| Product Type | High-Current Power Connector |
| Model | XT60 |
| Connector Type | Male & Female Pair |
| Contact Material | Gold-Plated Brass |
| Housing Material | High-Temperature Nylon |
| Rated Current | 60A Continuous |
| Peak Current | 100A (Short Duration) |
| Rated Voltage | Up to 500V DC |
| Recommended Wire Size | 12–14 AWG |
| Operating Temperature | -20°C to +120°C |
Pin Configuration
| Pin | Description |
|---|---|
| Positive (+) | Battery Positive Terminal |
| Negative (−) | Battery Negative Terminal |
Note: The XT60 connector is polarized, ensuring correct polarity and preventing accidental reverse connection.
Applications
- LiPo battery packs
- RC cars, boats, and airplanes
- FPV drones and quadcopters
- Electric bicycles (E-bikes)
- Robotics projects
- Battery chargers
- DIY power distribution systems
- High-current DC power applications
Advantages
- Handles high current safely
- Low contact resistance
- Excellent conductivity
- Secure locking connection
- Heat-resistant nylon housing
- Durable and long-lasting
- Easy to solder and install
Size
| Specification | Value |
|---|---|
| Connector Dimensions | Approx. 21 × 16 × 8 mm |
| Contact Diameter | 3.5 mm |
| Weight | Approx. 8 g per Pair |
Package Includes
- 1 × XT60 Male Connector
- 1 × XT60 Female Connector
Note: Use 12–14 AWG silicone wire for optimal performance. Ensure correct polarity before soldering, and insulate exposed solder joints with heat-shrink tubing to improve safety and durability.
