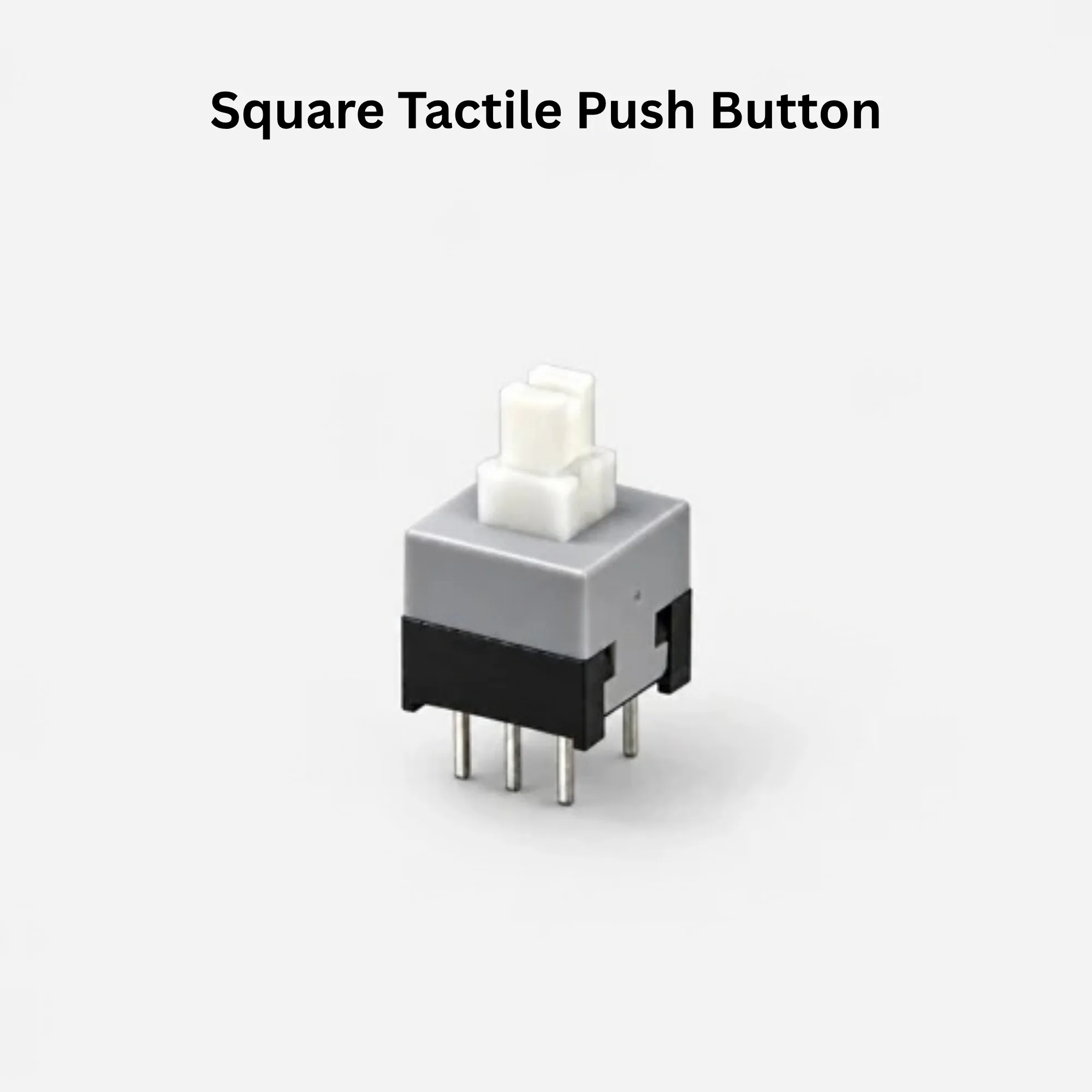

The Square Tactile Push Button is a momentary switch used to control electronic circuits with a simple press. It is suitable for Arduino projects, DIY electronics, PCB designs, and control panels.

Features

• Compact square-shaped push button

• Momentary switching operation

• Spring-loaded button mechanism

• PCB through-hole mounting

• Easy to integrate into electronic circuits

• Suitable for repeated manual operation

Specifications

Pin Configuration

• Two electrical contact pairs: The four pins typically form two pairs.

• Pressed: The two contact pairs connect internally.

• Released: The contacts return to their original open state.

Verify the pin arrangement with a multimeter before circuit installation.

Applications

• Arduino and microcontroller projects

• Reset and input buttons

• DIY electronic circuits

• Digital counters and calculators

• Control panels and embedded systems

• PCB prototyping

Advantages

• Small size saves PCB space

• Simple operation and wiring

• Easy to solder onto circuit boards

• Useful for manual input and reset functions

Size

Compact PCB-mounted design. Exact dimensions depend on the switch variant.

Package Includes

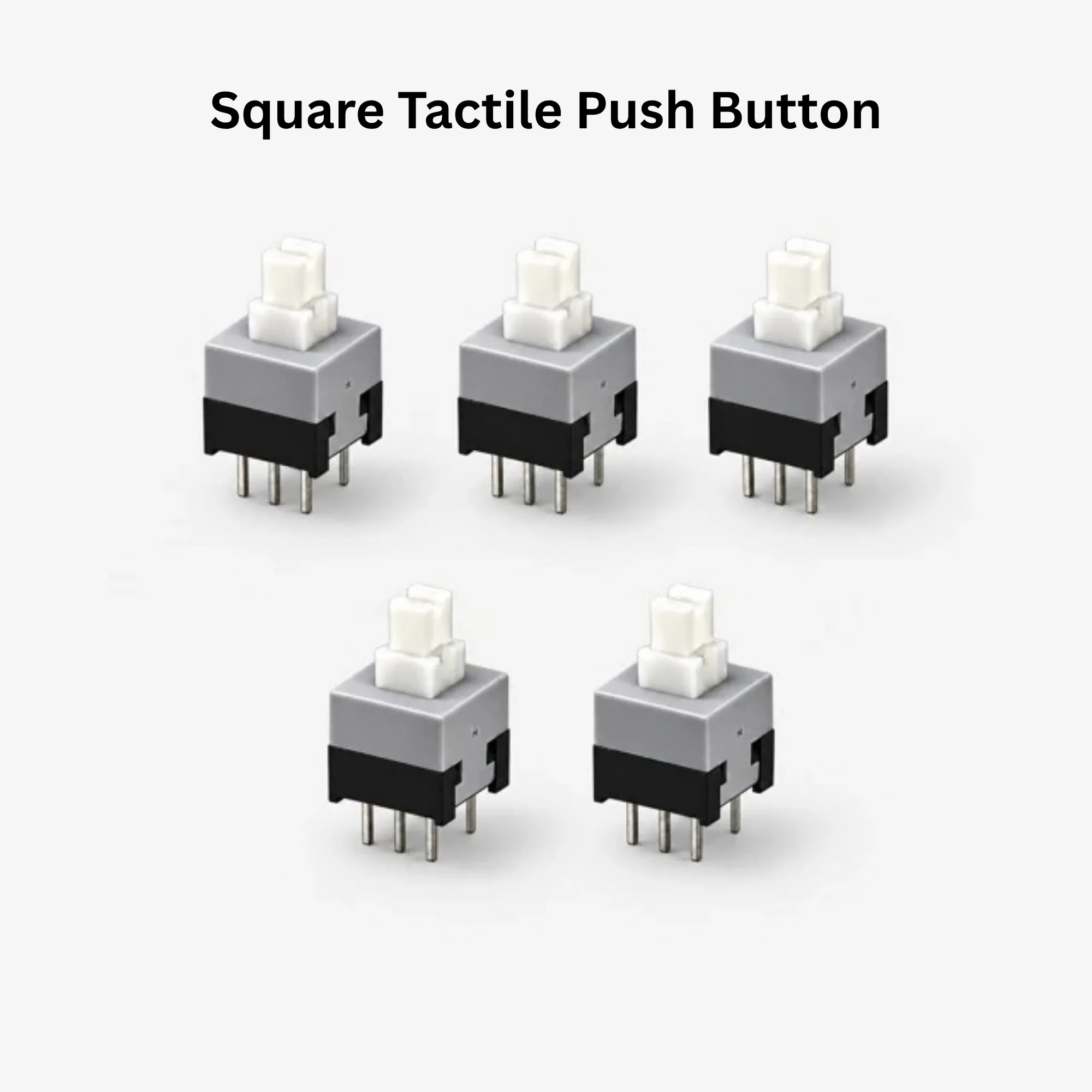

– 5 × Square Tactile Push Button Switch

Note

The operating voltage, current rating, button height, and dimensions depend on the specific model. Check the manufacturer’s specifications before using the switch in a circuit.
