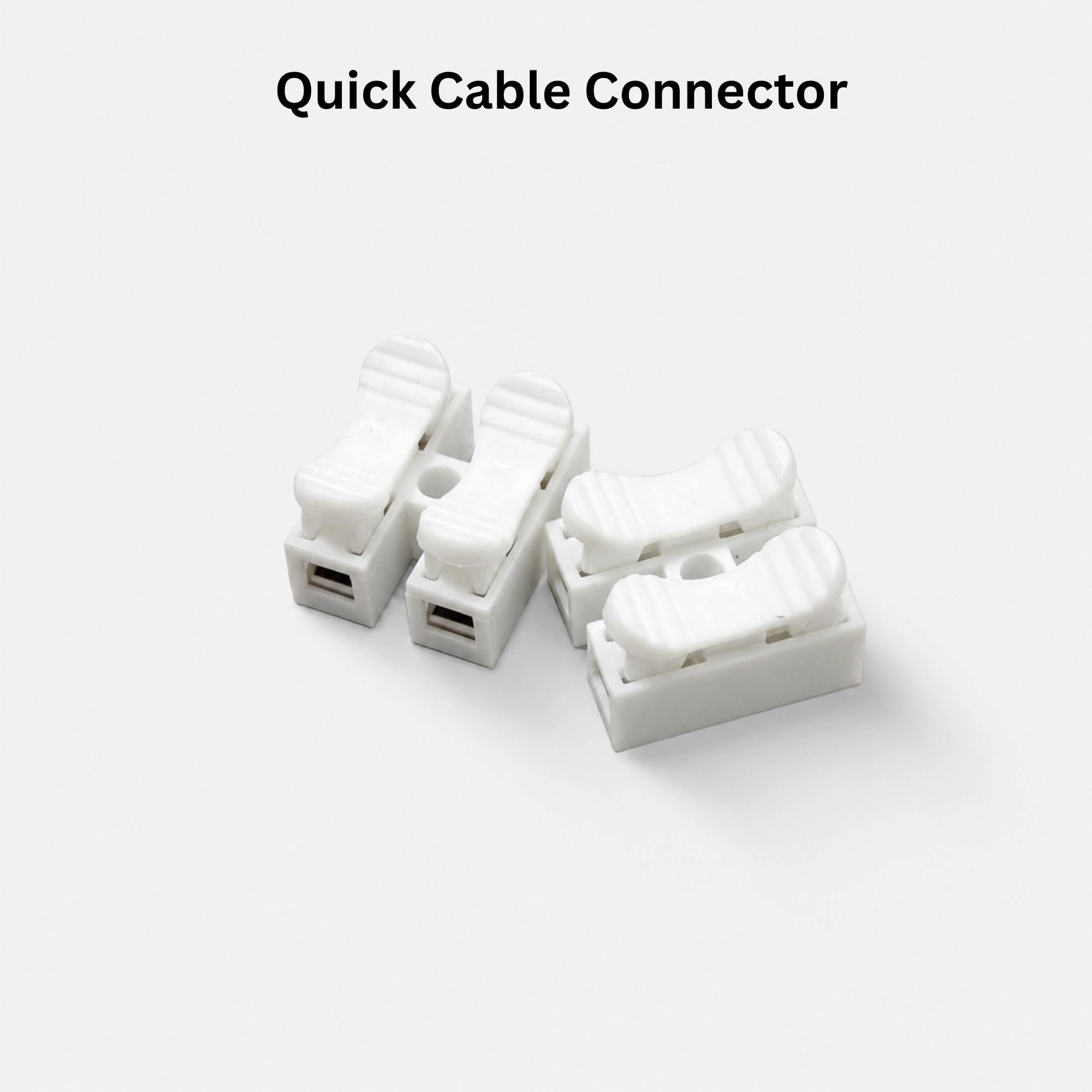

Quick Cable Connector (5Pcs)
Quick Cable Connector (5Pcs)
₹25.00
- Tool-free wire connection
- Easy lever-operated design
- Reusable connection
- Compact and lightweight
- Secure wire clamping
- Suitable for solid and stranded wires
- Transparent/white insulated housing
The Quick Cable Connector is a compact lever-type wire connector designed for fast and reliable electrical wire connections without soldering. Its lever-operated mechanism allows wires to be inserted and securely clamped, making it useful for LED projects, household wiring, lighting installations, Arduino projects, DIY electronics, and electrical repairs.
Features
- Tool-free wire connection
- Easy lever-operated design
- Reusable connection
- Compact and lightweight
- Secure wire clamping
- Suitable for solid and stranded wires
- Transparent/white insulated housing
Specifications
| Specification | Value |
|---|---|
| Product Type | Quick Wire Connector |
| Connector Type | Lever Clamp |
| Number of Positions | 2-Pin (Typical) |
| Housing Material | Flame-Retardant Plastic |
| Contact Material | Copper Alloy / Tin-Plated Metal |
| Wire Type | Solid & Stranded |
| Wire Size | Approx. 0.5–2.5 mm²* |
| Rated Voltage | Up to 250V AC* |
| Rated Current | Up to 10A–16A* |
| Connection Method | Lever Clamp |
| Reusable | Yes |
*Specifications vary according to the manufacturer and connector model.
Connection
| Part | Function |
|---|---|
| Lever | Opens/closes the internal clamp |
| Wire Entry | Insert stripped wire |
| Conductive Clamp | Holds and electrically connects the wire |
| Housing | Provides insulation and protection |
How to Use
- Lift the connector lever.
- Strip approximately 8–12 mm of insulation from the wire.
- Insert the stripped wire fully into the connector.
- Push the lever down firmly.
- Gently pull the wire to verify that it is securely clamped.
Applications
- LED lighting installations
- Arduino and electronics projects
- Breadboard and prototype wiring
- Household electrical connections
- Junction box wiring
- Fan and lighting connections
- DIY electrical projects
- Wire repairs and extensions
Advantages
- No soldering required
- Fast installation
- Reusable
- Secure electrical connection
- Easy to inspect and troubleshoot
- Compact design
- Saves installation time
Size
| Specification | Value |
|---|---|
| Connector Length | Approx. 20–25 mm* |
| Connector Width | Approx. 15–20 mm* |
| Connector Height | Approx. 12–18 mm* |
| Weight | Approx. 2–4 g each |
*Dimensions vary depending on the exact connector model.
Package Includes
- 5 × Quick Cable Connectors
Note: Always verify the connector’s current, voltage, and wire-size ratings before use. Turn off the power before making or changing connections. For mains-voltage applications, use connectors specifically rated for the intended voltage and current.
