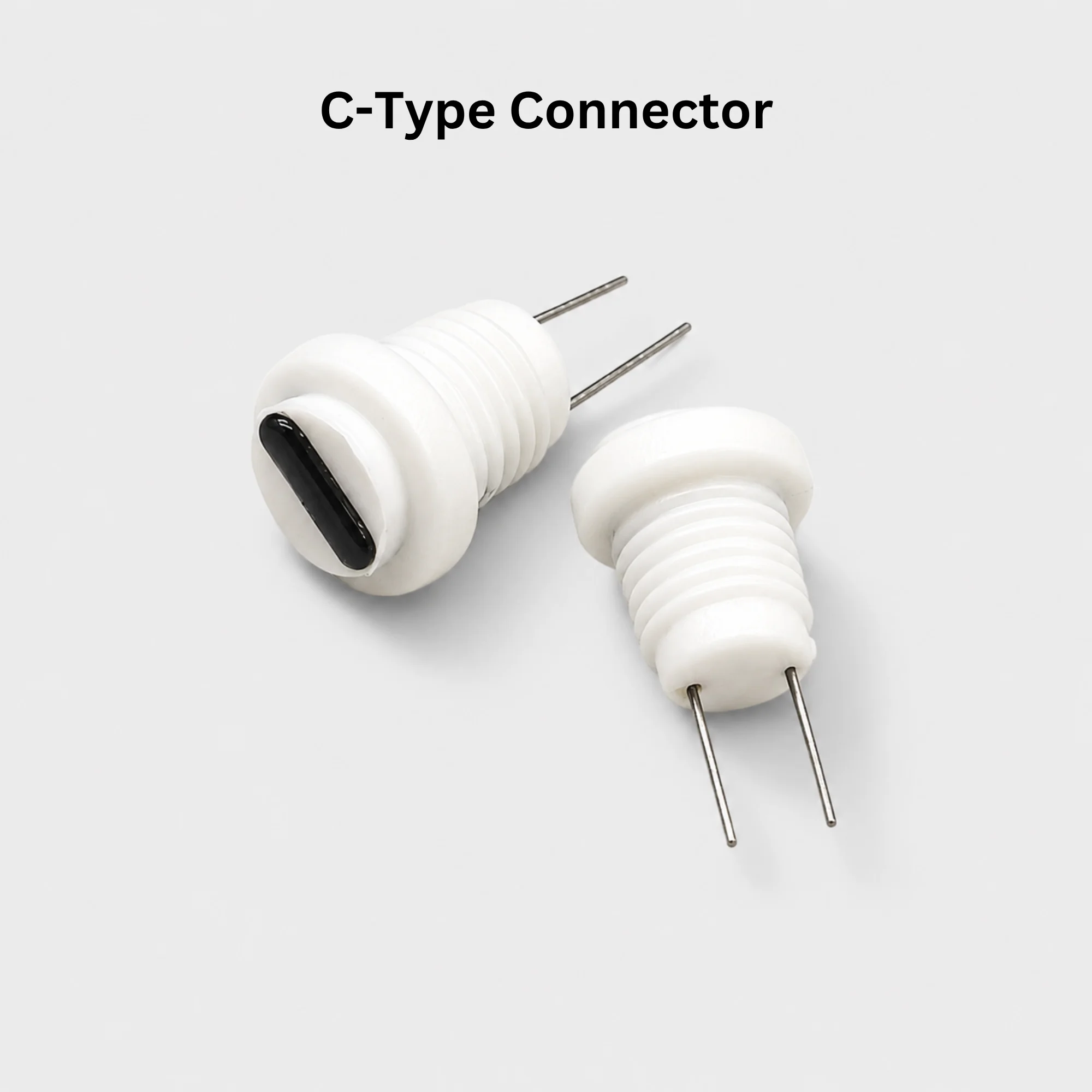

USB Type-C Female Connector (2-Pin Panel Mount)
₹99.00
- Full Name: USB Type-C Female 2-Pin Power Connector
- USB Type-C female receptacle
- Compact panel-mount design
- Simple 2-pin power output
- Supports 5V DC power input
- Durable plastic housing
- Easy through-hole mounting
- Ideal for DIY electronics projects
The USB Type-C Female Connector (2-Pin Panel Mount) is a compact power connector designed to provide a 5V DC power input for DIY electronics, battery-powered devices, and embedded systems. Unlike standard USB Type-C breakout boards, this connector exposes only the power terminals (VCC and GND), making it ideal for simple power supply applications.
Features
- Full Name: USB Type-C Female 2-Pin Power Connector
- USB Type-C female receptacle
- Compact panel-mount design
- Simple 2-pin power output
- Supports 5V DC power input
- Durable plastic housing
- Easy through-hole mounting
- Ideal for DIY electronics projects
Specifications
| Specification | Value |
|---|---|
| Product Type | USB Type-C Female Connector |
| Connector Type | USB Type-C Female |
| Number of Pins | 2 |
| Mounting Type | Through-Hole / Panel Mount |
| Operating Voltage | 5V DC |
| Maximum Current | Up to 3A (Application Dependent) |
| Housing Material | ABS Plastic |
| Contact Material | Copper Alloy |
| Contact Finish | Nickel/Tin Plated |
Pin Configuration
| Pin | Description |
|---|---|
| Pin 1 | VCC (+5V) |
| Pin 2 | GND (Ground) |
Note: This connector is intended only for power input/output. It does not provide USB data communication (D+ and D−) or USB Type-C Power Delivery (PD) functionality.
Applications
- DIY power supply projects
- Arduino and ESP32 power input
- Raspberry Pi accessories
- USB-powered devices
- Battery charging circuits
- Portable electronics
- Embedded systems
- Robotics projects
- Educational electronics
Advantages
- Compact and lightweight
- Easy to install
- Reliable 5V power connection
- Reversible USB Type-C interface
- Durable construction
- Low contact resistance
- Cost-effective
Size
| Specification | Value |
|---|---|
| Connector Diameter | Approx. 10 mm |
| Overall Length | Approx. 18 mm |
| Pin Length | Approx. 10 mm |
| Weight | Approx. 2 g |
Package Includes
- 1 × USB Type-C Female 2-Pin Connector
Note: Verify the polarity (VCC and GND) before connecting the power supply. This connector is suitable for 5V power applications only and is not intended for USB data transfer or USB Power Delivery (PD) fast-charging applications.
