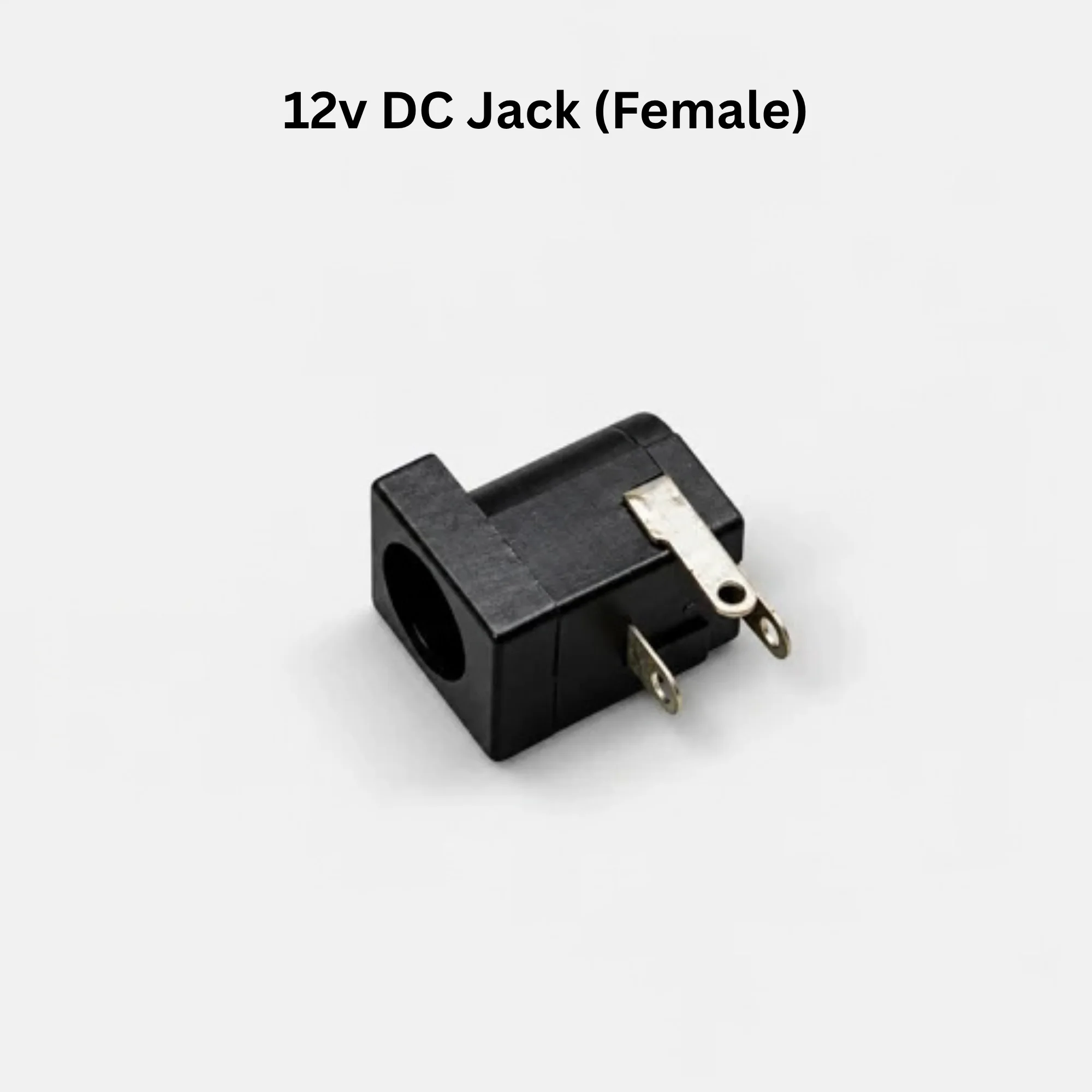

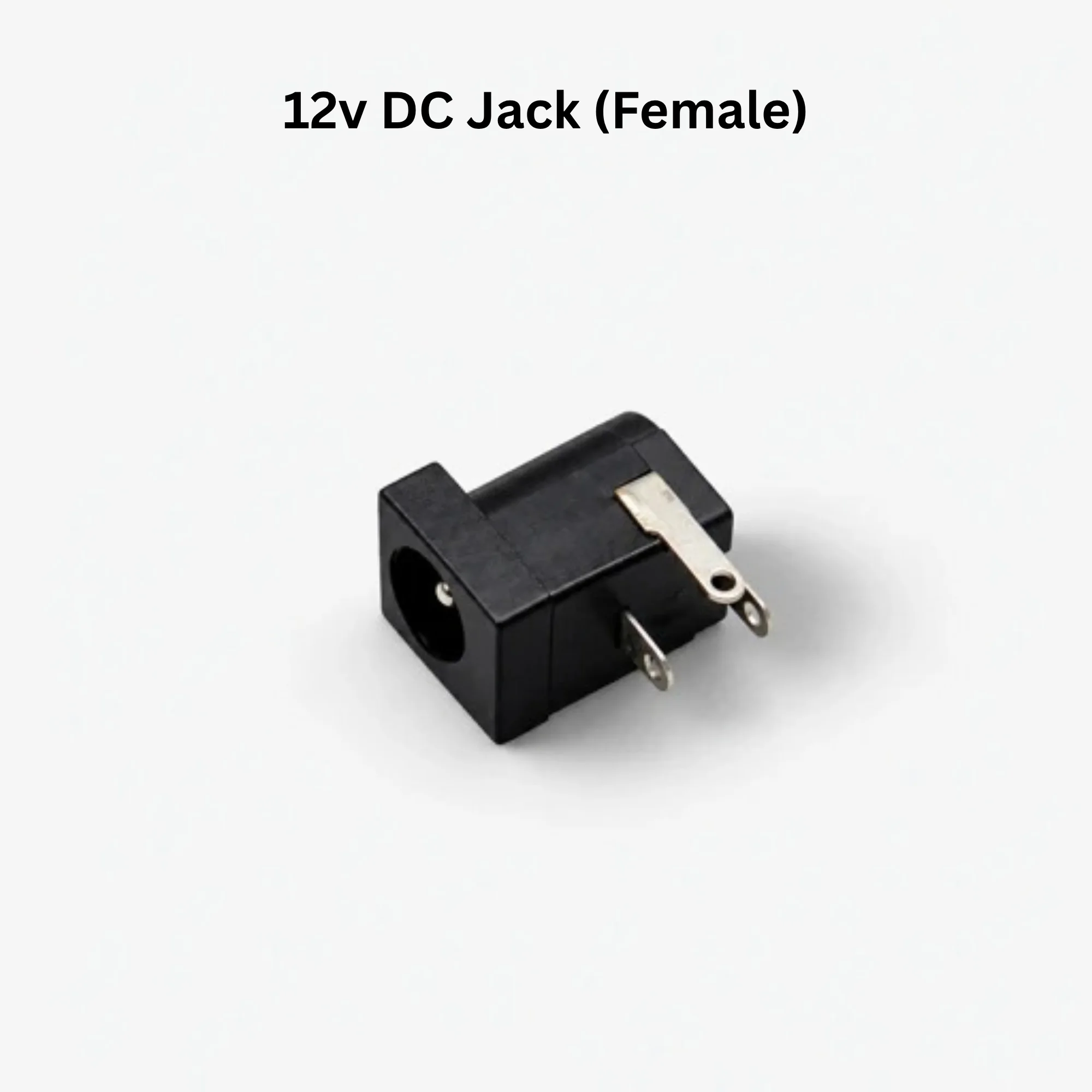

The 12V DC Female Jack is a power connector used to provide a connection point for DC power supplies and adapters. It is commonly used in electronic circuits, LED lighting, DIY projects, and other low-voltage applications.

Features

• Female socket for DC barrel plugs

• Compact and lightweight design

• Metal terminals for electrical connections

• Easy to mount and integrate into electronic enclosures

• Suitable for DC power input applications

• Durable plastic housing

Specifications

Terminal Configuration

• Positive (+): Typically connected to the center contact.

• Negative (−): Typically connected to the outer barrel contact.

• Additional terminal: May be used as a switched contact on some models.

Applications

• 12V DC power adapters

• LED strips and lighting systems

• Arduino and electronics projects

• CCTV and security equipment

• DIY power supply circuits

• Small electronic devices

Advantages

• Simple and convenient power connection

• Easy to install and wire

• Compatible with matching DC barrel plugs

• Suitable for a wide range of electronics projects

Size

Compact connector. Exact dimensions and barrel-plug compatibility depend on the model.

Package Includes

– 1 × 12V DC Female Jack

Note

The connector itself is not limited to 12V; the actual voltage and current ratings depend on the specific model. Check the jack dimensions and current rating before use, and verify terminal polarity before connecting power.
