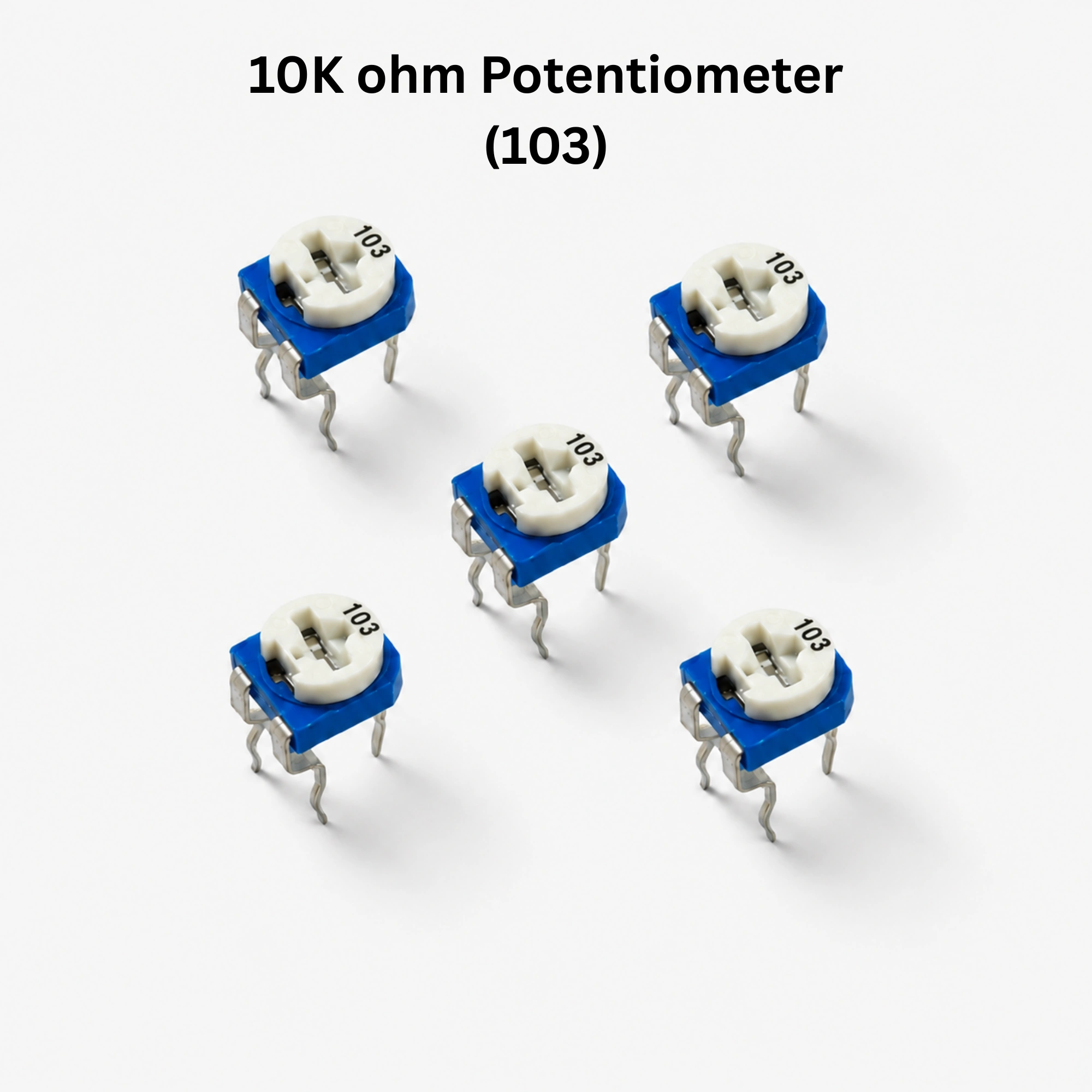

5 Pcs 10K Ohm Potentiometer (103)
5 Pcs 10K Ohm Potentiometer (103)
₹39.00
- 10KΩ resistance value
- Standard 103 marking
- Compact PCB-mount design
- Screw-adjustable
- 3-terminal configuration
- Single-turn adjustment
- Easy to install on PCBs
- Pack of 5 pieces
The 10K Ohm Potentiometer (103) is a compact adjustable resistor designed for resistance adjustment, circuit tuning, and calibration. Its small PCB-mount design makes it ideal for DIY electronics, prototypes, and various control circuits.
Features
- 10KΩ resistance value
- Standard 103 marking
- Compact PCB-mount design
- Screw-adjustable
- 3-terminal configuration
- Single-turn adjustment
- Easy to install on PCBs
- Pack of 5 pieces
Specifications
| Specification | Details |
|---|---|
| Product Type | Trimmer Potentiometer |
| Resistance | 10KΩ (10,000Ω) |
| Marking | 103 |
| Number of Terminals | 3 |
| Adjustment Type | Screw Adjustment |
| Mounting Type | PCB Mount |
| Adjustment | Single Turn |
| Body Material | Plastic |
| Quantity | 5 Pieces |
| Configuration | Variable Resistor |
Pin Configuration
| Pin | Function |
|---|---|
| Pin 1 | Resistance Terminal |
| Pin 2 | Wiper / Adjustable Output |
| Pin 3 | Resistance Terminal |
The resistance between the two outer terminals is approximately 10KΩ, while the center terminal provides the adjustable wiper output.
Applications
- Voltage adjustment
- Current adjustment
- Sensor calibration
- LED brightness control
- Amplifier circuits
- Timing circuits
- Arduino projects
- DIY electronic circuits
- Circuit prototyping
Advantages
- Compact and lightweight
- Easy PCB mounting
- Simple screwdriver adjustment
- Useful for precise circuit tuning
- Requires minimal PCB space
- Cost-effective for calibration applications
Size
Approx. 7 × 7 × 5 mm
Package Includes
- 5 × 10KΩ Potentiometer (103)
Note
The 103 marking represents 10KΩ (10,000Ω) according to the standard 3-digit resistor marking system. Use the potentiometer within its rated power limit.
