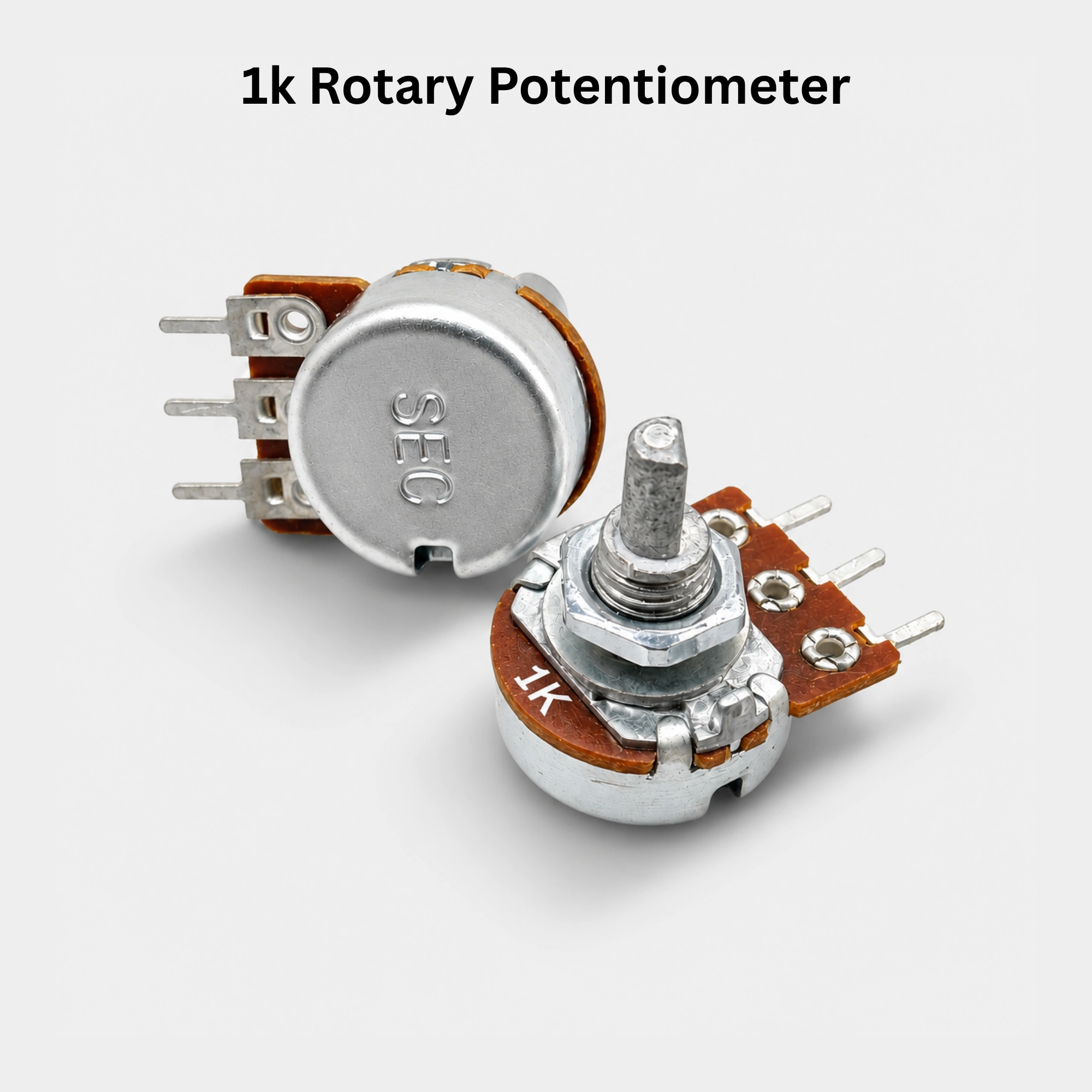

The 1K Rotary Potentiometer is a variable resistor used to adjust voltage, current, signal level, and other circuit parameters by rotating its shaft. It features a compact metal body, rotary shaft, and three terminals for use as a potentiometer or variable resistor.
Features
- Resistance value: 1KΩ
- Rotary shaft operation
- 3-terminal configuration
- Smooth and adjustable resistance
- Compact metal construction
- Panel-mountable design
- Suitable for analog circuit control
- Easy to connect and use
Specifications
| Specification |
Details |
| Product Type |
Rotary Potentiometer |
| Resistance |
1KΩ |
| Resistance Code |
102 |
| Number of Terminals |
3 |
| Adjustment Type |
Rotary |
| Shaft Type |
Metal Shaft |
| Body Material |
Metal |
| Mounting |
Panel Mount |
| Output |
Variable Resistance |
| Application |
Voltage / Signal / Level Control |
Pin Configuration
| Pin |
Function |
| Pin 1 |
Resistance End |
| Pin 2 |
Wiper / Variable Output |
| Pin 3 |
Resistance End |
Pin 2 is the wiper and provides a variable resistance relative to either outer terminal.
Applications
- Volume control
- LED brightness adjustment
- Motor speed control
- Voltage adjustment
- Audio circuits
- Amplifier circuits
- Arduino and microcontroller projects
- DIY electronic projects
- Analog signal control
Advantages
- Simple rotary adjustment
- Reliable mechanical construction
- Easy panel mounting
- Compact size
- Useful for a wide range of electronic circuits
Size
Compact rotary potentiometer with metal shaft and panel-mounting hardware.
Package Includes
- 1 × 1K Rotary Potentiometer
Note
This is a 1KΩ (1000Ω) potentiometer. The maximum resistance is measured between the two outer terminals, while the center terminal acts as the adjustable wiper.
