Motor & Pump
2 × BO Geared DC Motors
₹79.00
- Full Name: 2 × BO Geared DC Motors Set
- Includes two BO geared DC motors
- High torque with low-speed operation
- Lightweight and compact design
- Durable plastic gearbox
- Supports clockwise and counter-clockwise rotation
- Easy to mount on robot chassis
- Compatible with BO motor wheels

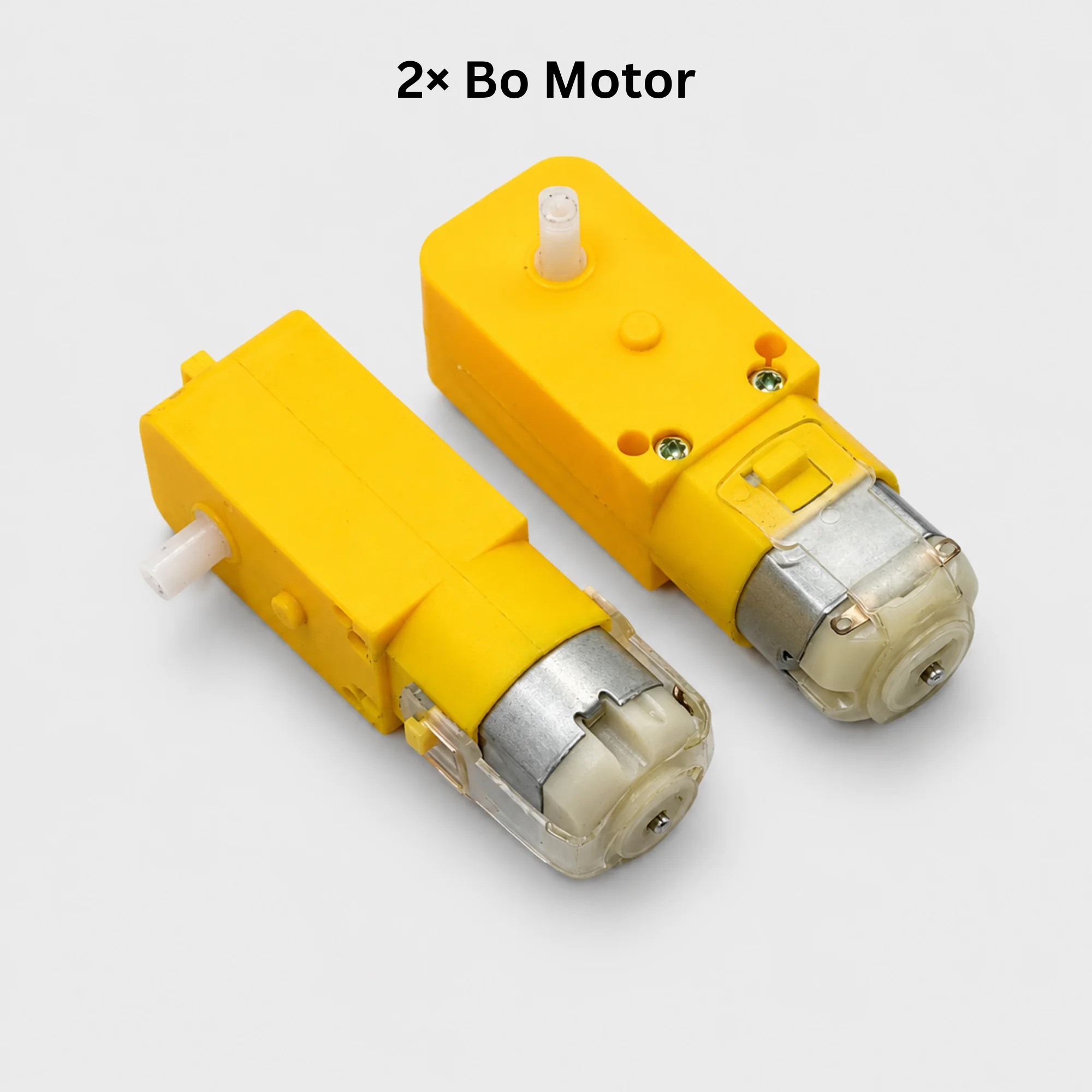

The 2 × BO Geared DC Motors Set includes two compact BO geared DC motors designed for 2-wheel drive (2WD) robots, Arduino projects, robotics, smart vehicles, STEM education, and DIY electronics. These motors feature a high-torque plastic gearbox that provides smooth, reliable, and efficient operation at low speeds, making them ideal for beginner and educational robotics applications.
Features
- Full Name: 2 × BO Geared DC Motors Set
- Includes two BO geared DC motors
- High torque with low-speed operation
- Lightweight and compact design
- Durable plastic gearbox
- Supports clockwise and counter-clockwise rotation
- Easy to mount on robot chassis
- Compatible with BO motor wheels
Specifications
| Specification | Value |
|---|---|
| Product Type | DC Geared Motor Set |
| Motor Type | BO Geared DC Motor |
| Quantity | 2 Motors |
| Operating Voltage | 3V – 12V DC |
| Rated Voltage | 6V DC |
| No-Load Speed | 100–300 RPM (Model Dependent) |
| Gearbox Type | Plastic Gearbox |
| Shaft Type | D-Type Shaft |
| Shaft Diameter | 5.5 mm (D-Type) |
| Shaft Length | Approx. 10 mm |
| Rotation | Clockwise / Counter-Clockwise |
| Weight | Approx. 35 g per Motor |
Pin Configuration
| Terminal | Description |
|---|---|
| + | Positive Supply |
| − | Negative Supply |
Note: Reversing the supply polarity changes the motor’s rotation direction.
Applications
- 2WD Robot Cars
- Arduino Projects
- ESP32 and Raspberry Pi Projects
- Line Follower Robots
- Obstacle Avoidance Robots
- Smart Vehicle Projects
- STEM Education
- DIY Robotics
- Educational Electronics Kits
Advantages
- High torque output
- Low power consumption
- Smooth and reliable operation
- Lightweight construction
- Easy installation
- Compatible with popular motor drivers such as L298N, L293D, and TB6612FNG
- Cost-effective for robotics projects
Size
| Specification | Value |
|---|---|
| Motor Dimensions | Approx. 70 × 22 × 18 mm |
| Shaft Diameter | 5.5 mm (D-Type) |
| Shaft Length | Approx. 10 mm |
| Weight | Approx. 35 g per Motor |
Package Includes
- 2 × BO Geared DC Motors
Note: For optimal performance, operate the motors with a 3V–12V DC regulated power supply and a compatible motor driver module. These motors are designed to fit BO motor wheels with a D-type shaft, making them an excellent choice for building 2WD robotic vehicles.
