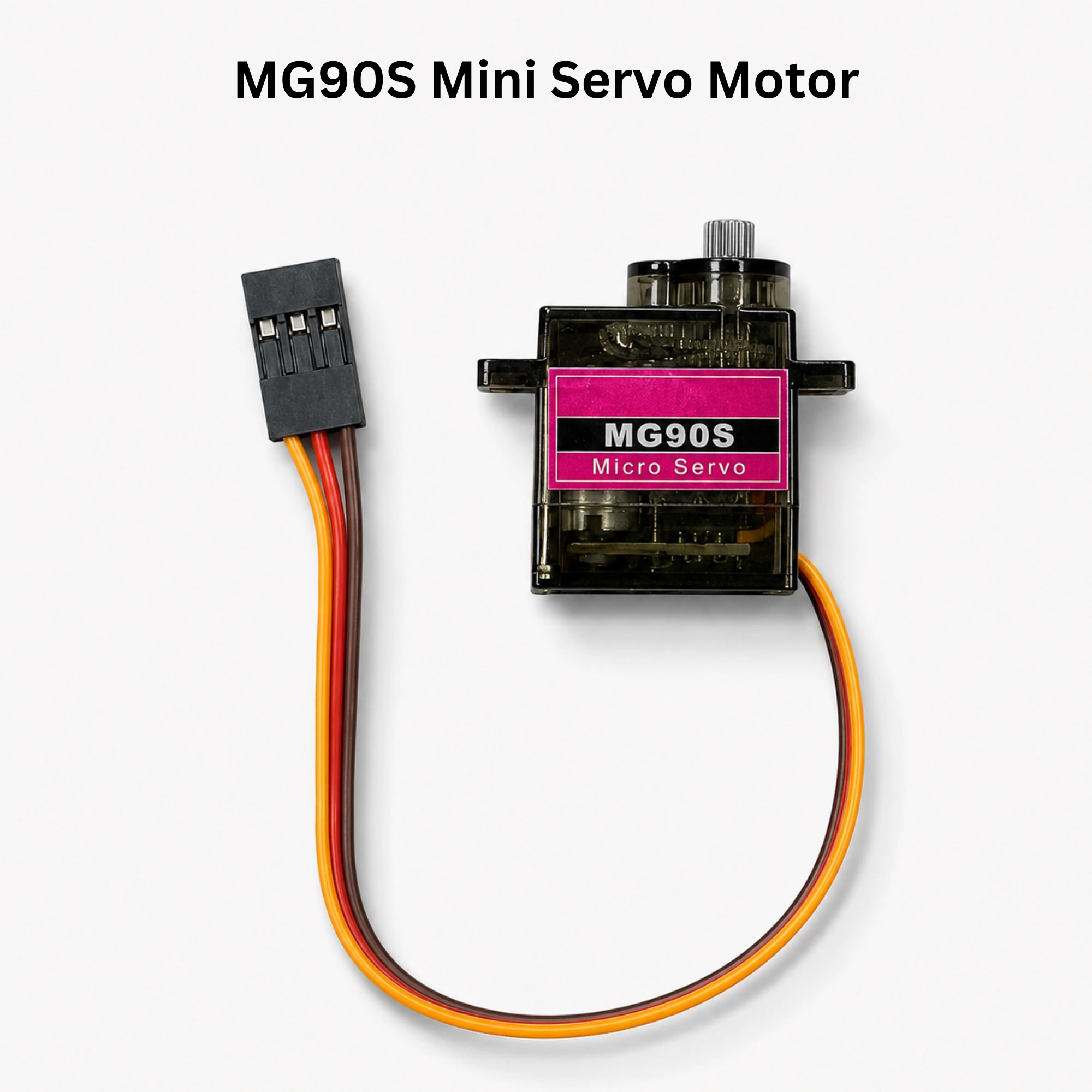

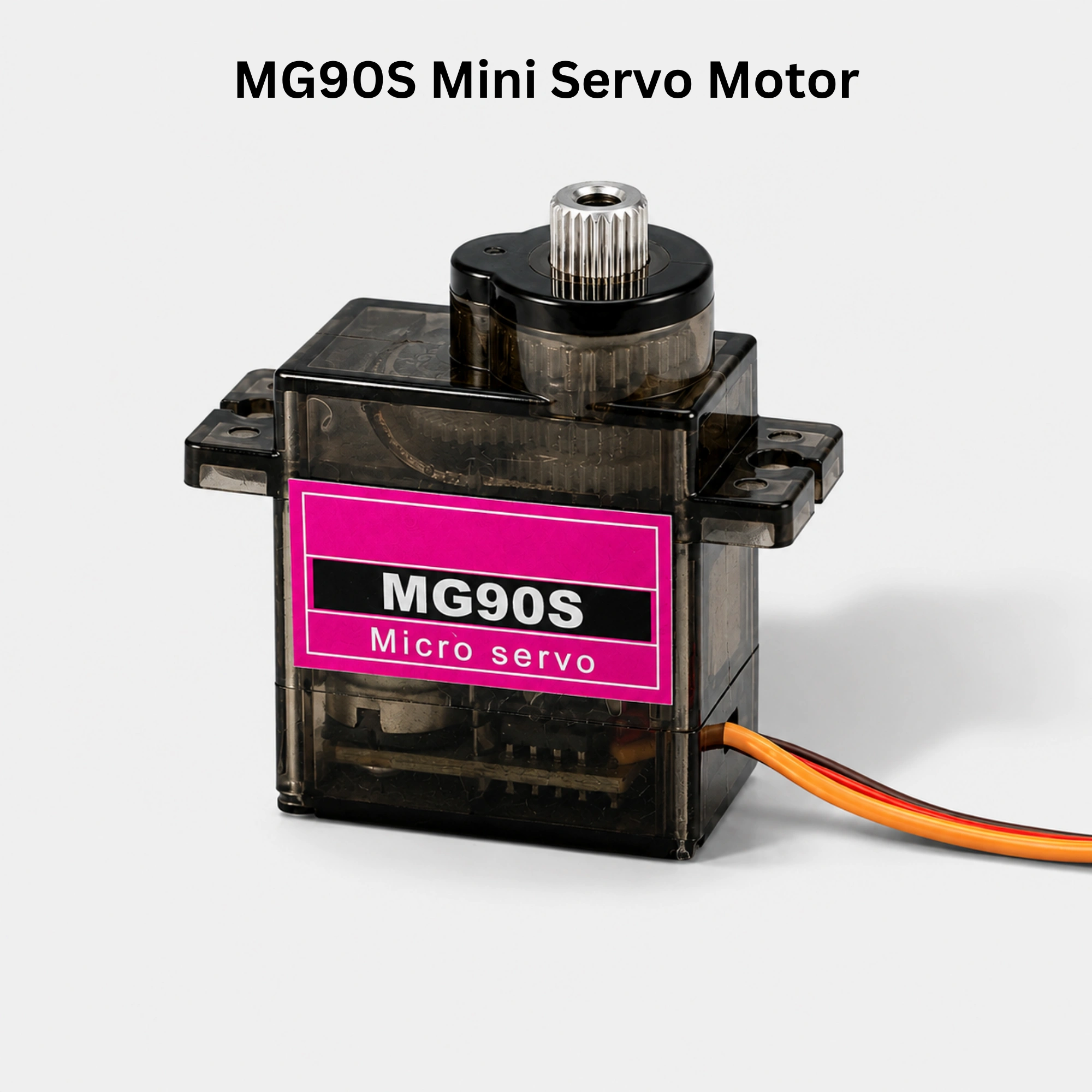

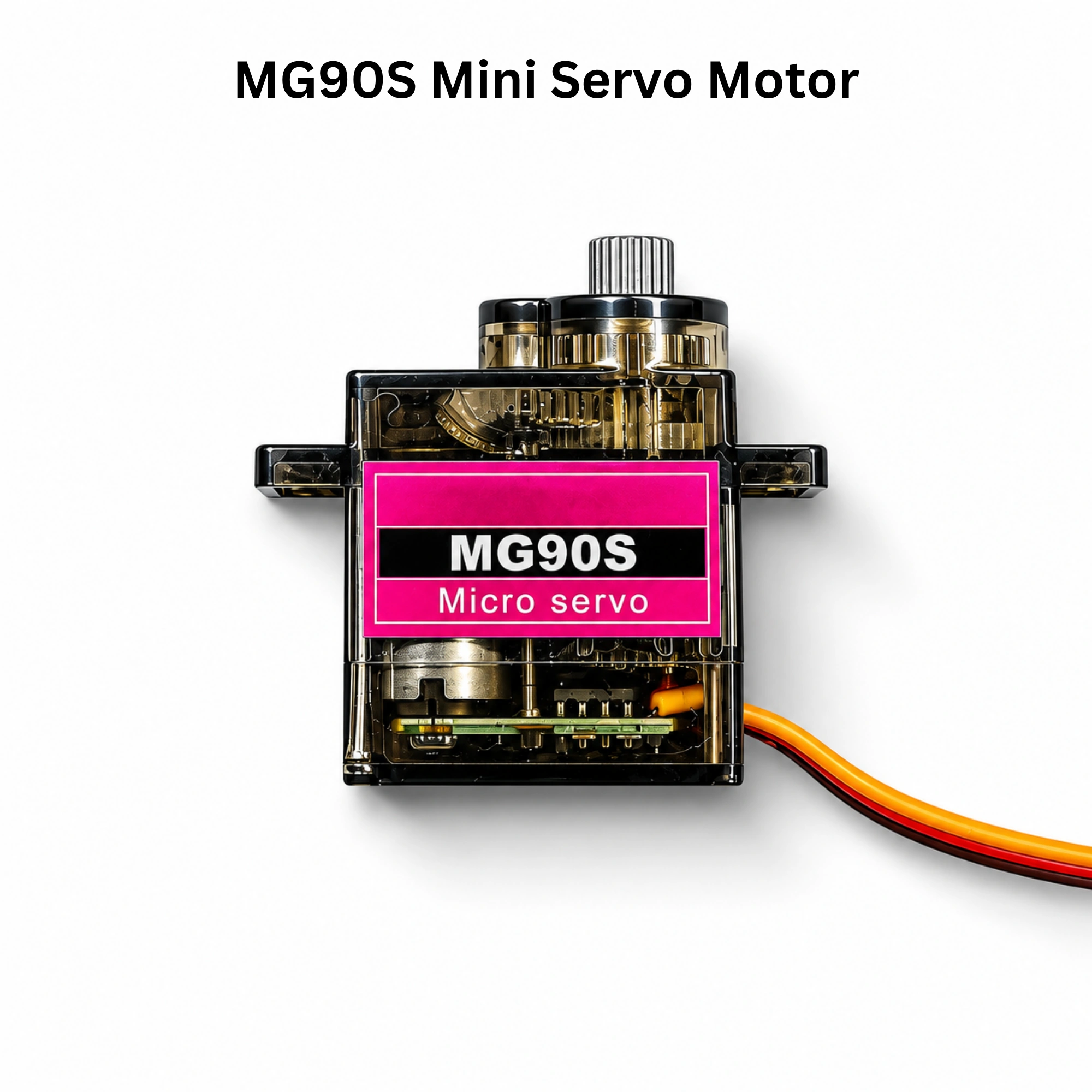

The MG90S Mini Servo Motor is a compact metal-gear micro servo designed for precise angular positioning and movement. It is widely used in Arduino projects, robotics, RC models, robotic arms, camera pan-tilt systems, and DIY automation projects.
Features
- Compact and lightweight design
- Metal gear mechanism
- Precise angular positioning
- Typically operates over approximately 180°
- Includes multiple servo horns
- Includes mounting screws
- 3-wire connection
- Suitable for Arduino and other microcontroller projects
Specifications
| Specification |
Value |
| Product Type |
Micro Servo Motor |
| Model |
MG90S |
| Motor Type |
DC Servo |
| Gear Material |
Metal |
| Operating Voltage |
4.8–6V DC |
| Operating Angle |
Approx. 180° |
| Speed |
Approx. 0.10–0.12 sec/60°* |
| Stall Torque |
Approx. 1.8–2.2 kg·cm* |
| Control Signal |
PWM |
| Wire Count |
3 |
| Connector |
3-Pin Servo Connector |
| Weight |
Approx. 13–14 g |
| Body Size |
Approx. 23 × 12 × 29 mm |
*Performance varies between MG90S manufacturers and versions.
Wire Configuration
| Wire Color |
Function |
| Brown / Black |
GND (−) |
| Red |
VCC (+) |
| Orange / Yellow |
PWM Signal |
Applications
- Arduino projects
- Robotic arms
- Robot cars
- RC aircraft and vehicles
- Pan-tilt camera systems
- Robotic mechanisms
- Smart home projects
- Model making
- DIY automation
- Sensor positioning systems
Advantages
- Small and lightweight
- Metal gears provide better durability than plastic-gear micro servos
- Precise position control
- Easy to interface with Arduino and other microcontrollers
- Low-voltage operation
- Multiple mounting horns included
- Suitable for compact robotic mechanisms

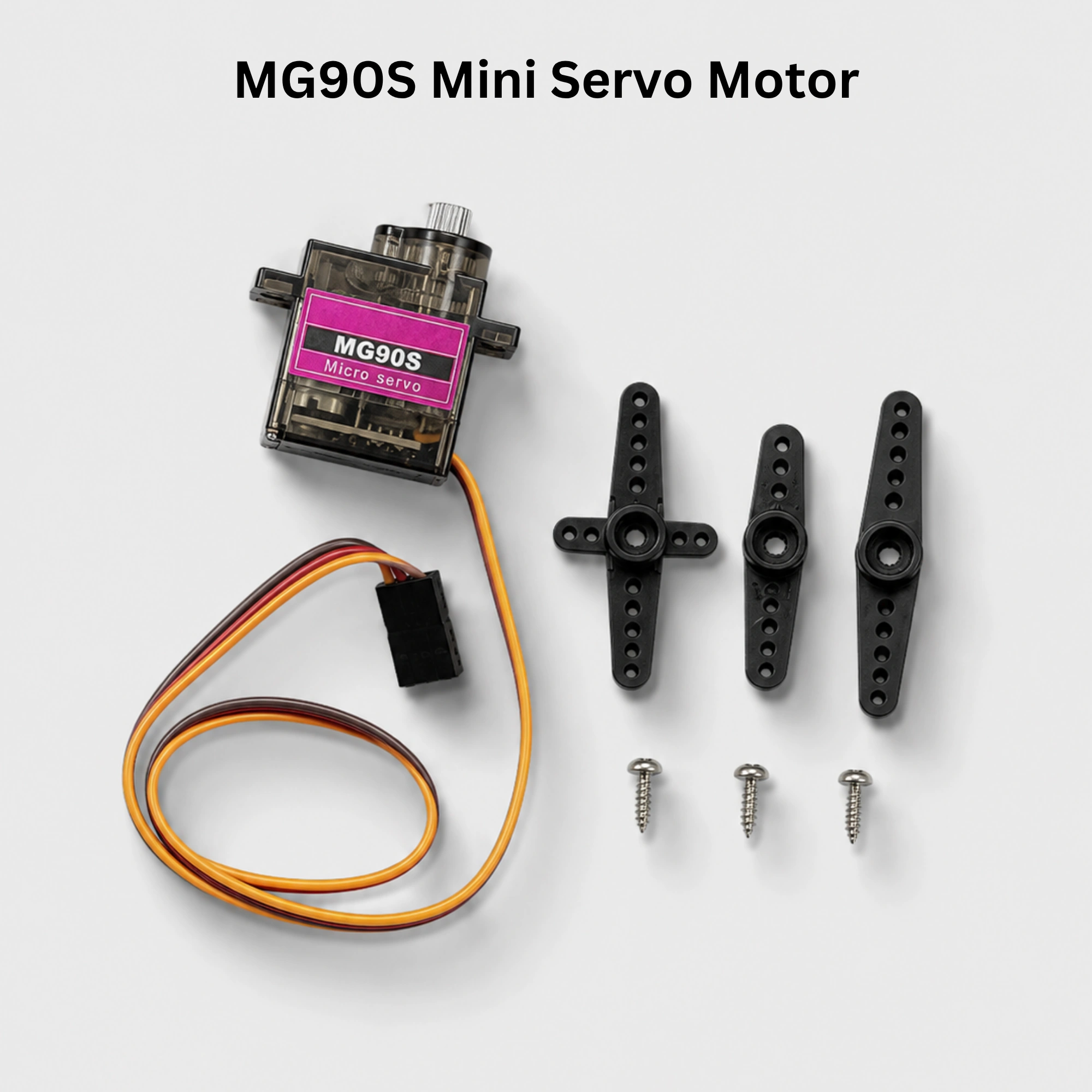

Package Includes
- 1 × MG90S Mini Servo Motor
- 3 × Servo Horns
- Mounting Screws
- 1 × 3-Pin Servo Cable
Note: A servo motor should be powered from a suitable 5V-class supply capable of handling its current demand. When used with an Arduino or similar controller, the servo’s power should generally come from an appropriate external supply rather than relying on the microcontroller’s 5V pin for higher-load operation. Do not exceed the servo’s rated voltage.
