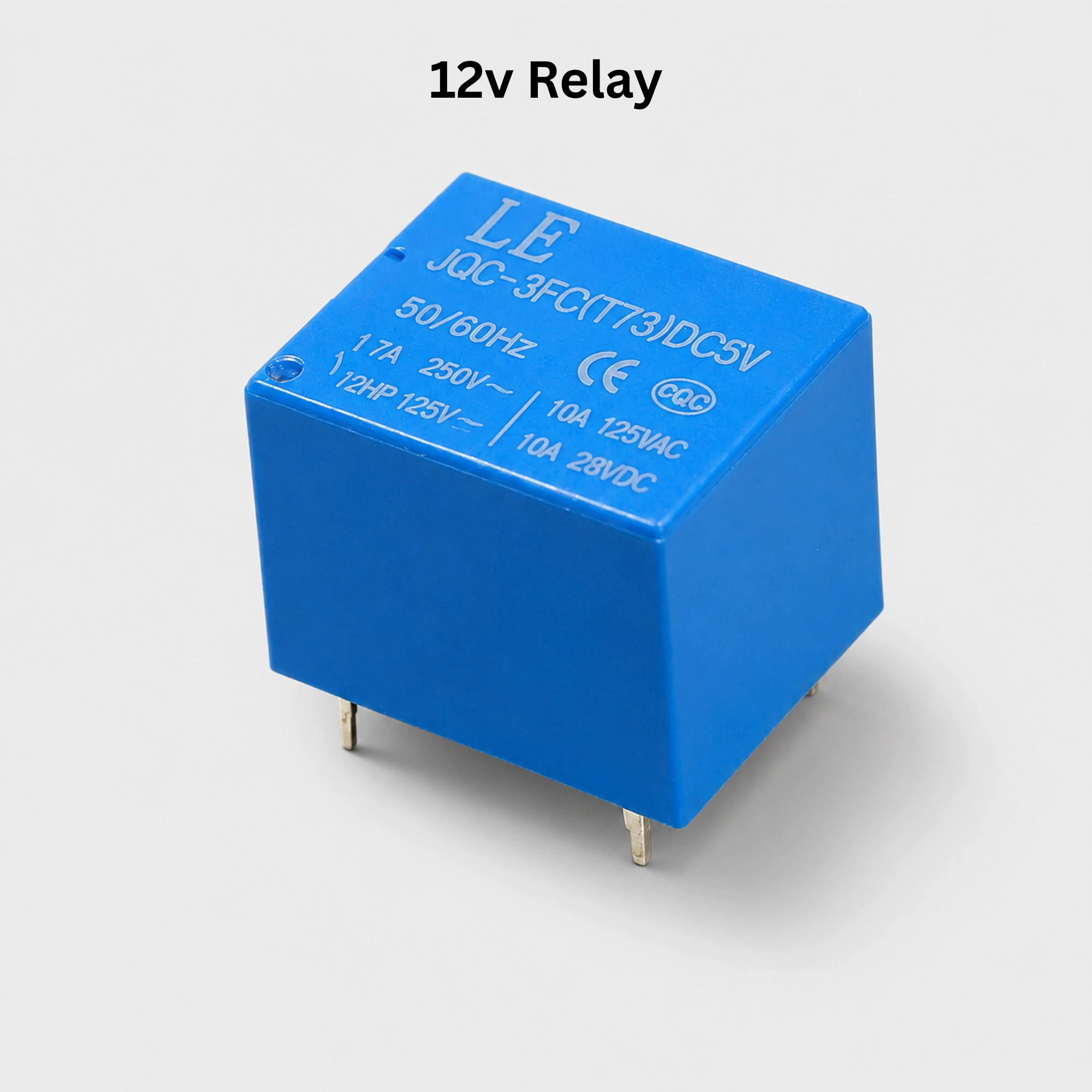

12V SPDT PCB Relay

The 12V SPDT PCB Relay is an electromagnetic relay designed for switching high-voltage or high-current loads using a low-voltage control signal. It is widely used in Arduino projects, automation systems, home appliances, power supplies, industrial control, and DIY electronics. The relay features a 12V DC coil and Single Pole Double Throw (SPDT) contacts, allowing you to control AC or DC loads safely.

Features

• Full Name: 12V SPDT Electromagnetic PCB Relay
• 12V DC coil operation
• SPDT (1 Form C) contact configuration
• High switching capacity
• Low coil power consumption
• PCB through-hole mounting
• Reliable electromagnetic switching
• Long mechanical and electrical life

Specifications

Pin Configuration

Note: When the 12V coil is energized, the relay switches the COM terminal from NC to NO.

Applications

• Arduino projects
• ESP32 and Raspberry Pi projects
• Home automation
• Industrial automation
• Motor control
• Lighting control
• Security systems
• Smart home devices
• DIY electronics projects

Advantages

• Isolates low-voltage control circuits from high-voltage loads
• High current switching capability
• Reliable and durable operation
• Low power coil consumption
• Easy PCB mounting
• Long service life
• Cost-effective

Size

Package Includes

• 1 × 12V SPDT PCB Relay

Note: Although the relay coil operates at 12V DC, the contacts can switch high-voltage AC or DC loads. Always ensure the connected load does not exceed the relay’s 10A rating, and follow proper electrical safety precautions when working with mains voltage.
