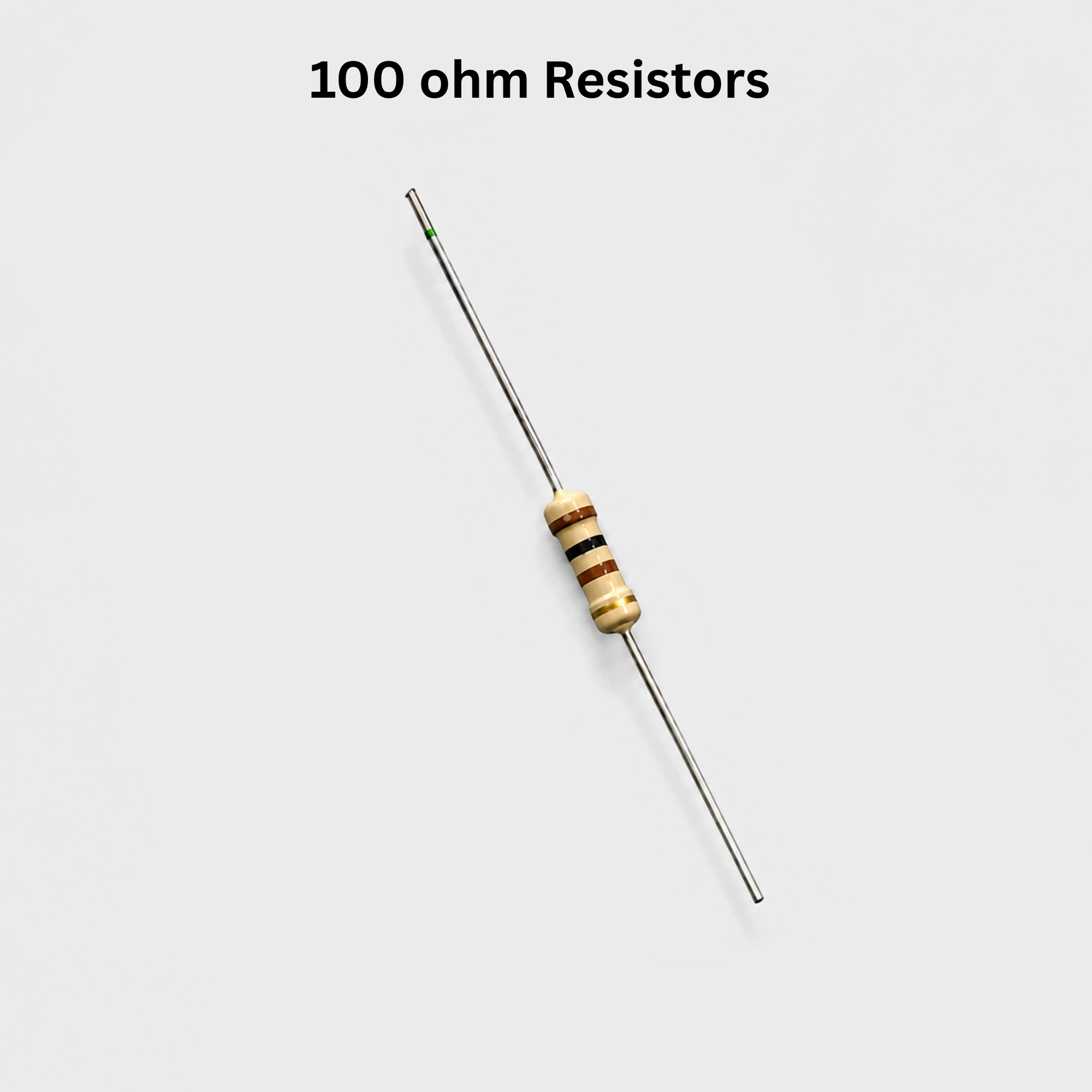

The 100Ω Resistor is a fixed through-hole carbon film resistor designed to limit current, divide voltage, and protect electronic components in a wide range of circuits. It is one of the most commonly used resistor values for LED current limiting, Arduino projects, breadboard prototyping, PCB designs, and DIY electronics.

Features

• Fixed resistance value of 100Ω
• 1/4W (0.25W) power rating
• ±5% tolerance
• Through-hole axial lead package
• Low noise and stable performance
• Flame-retardant protective coating
• Suitable for breadboards and PCB mounting

Specifications

Color Code

Note: The color code Brown – Black – Brown – Gold represents a 100Ω resistor with ±5% tolerance.

Applications

• LED current limiting
• Arduino and ESP32 projects
• Breadboard prototyping
• PCB circuit design
• Voltage divider circuits
• Signal conditioning
• Educational electronics
• DIY electronics projects
• General-purpose electronic circuits

Advantages

• Stable resistance value
• Low noise operation
• Compact and lightweight
• Easy to solder
• Reliable performance
• Widely used standard value
• Cost-effective

Size

Package Includes

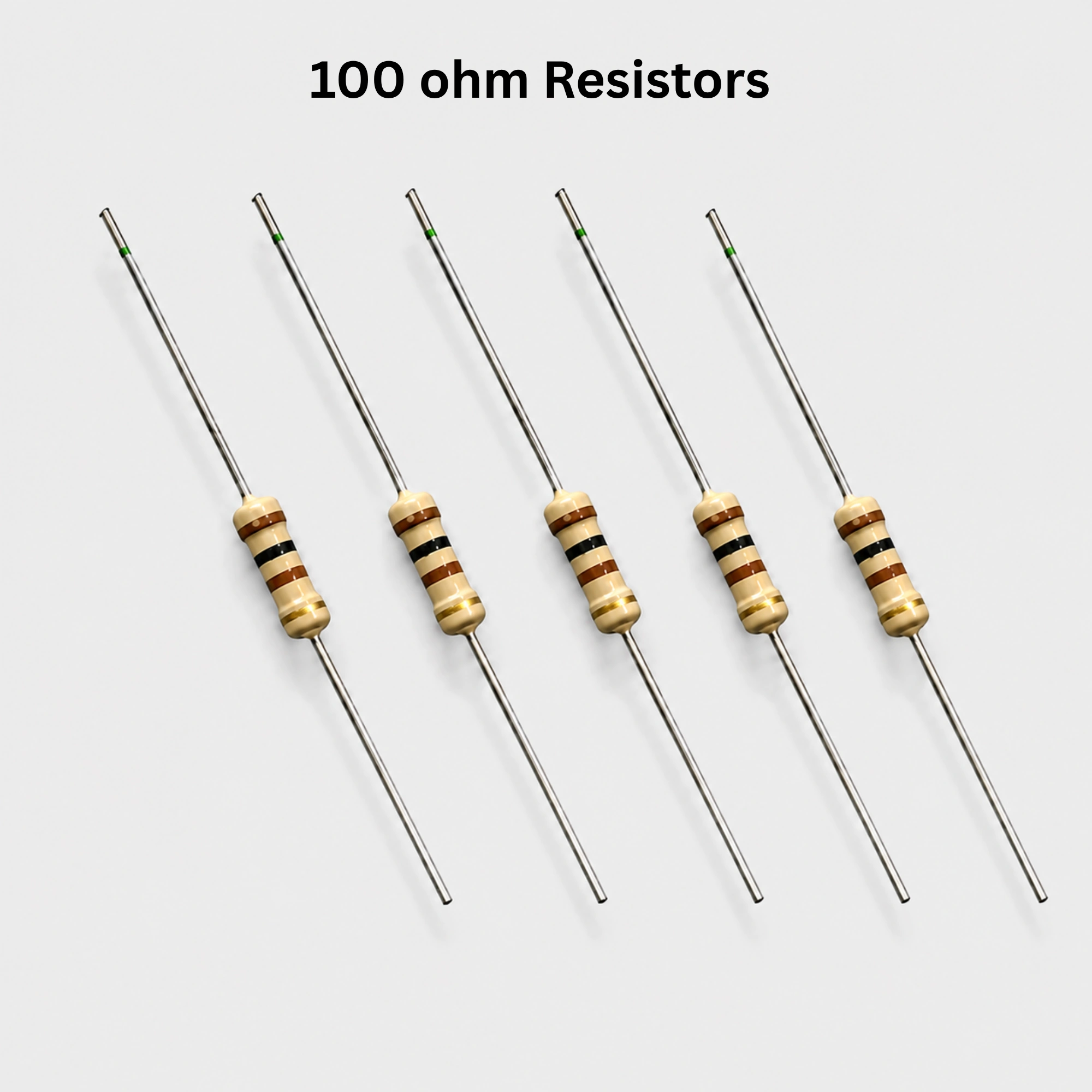

• 5 × 100Ω 1/4W Carbon Film Resistors

Note: The maximum power dissipation of this resistor is 0.25W (1/4 Watt). Ensure that the applied voltage and current remain within the rated limits to prevent overheating. This resistor is commonly used as a current-limiting resistor for LEDs and in general-purpose electronic circuits.
