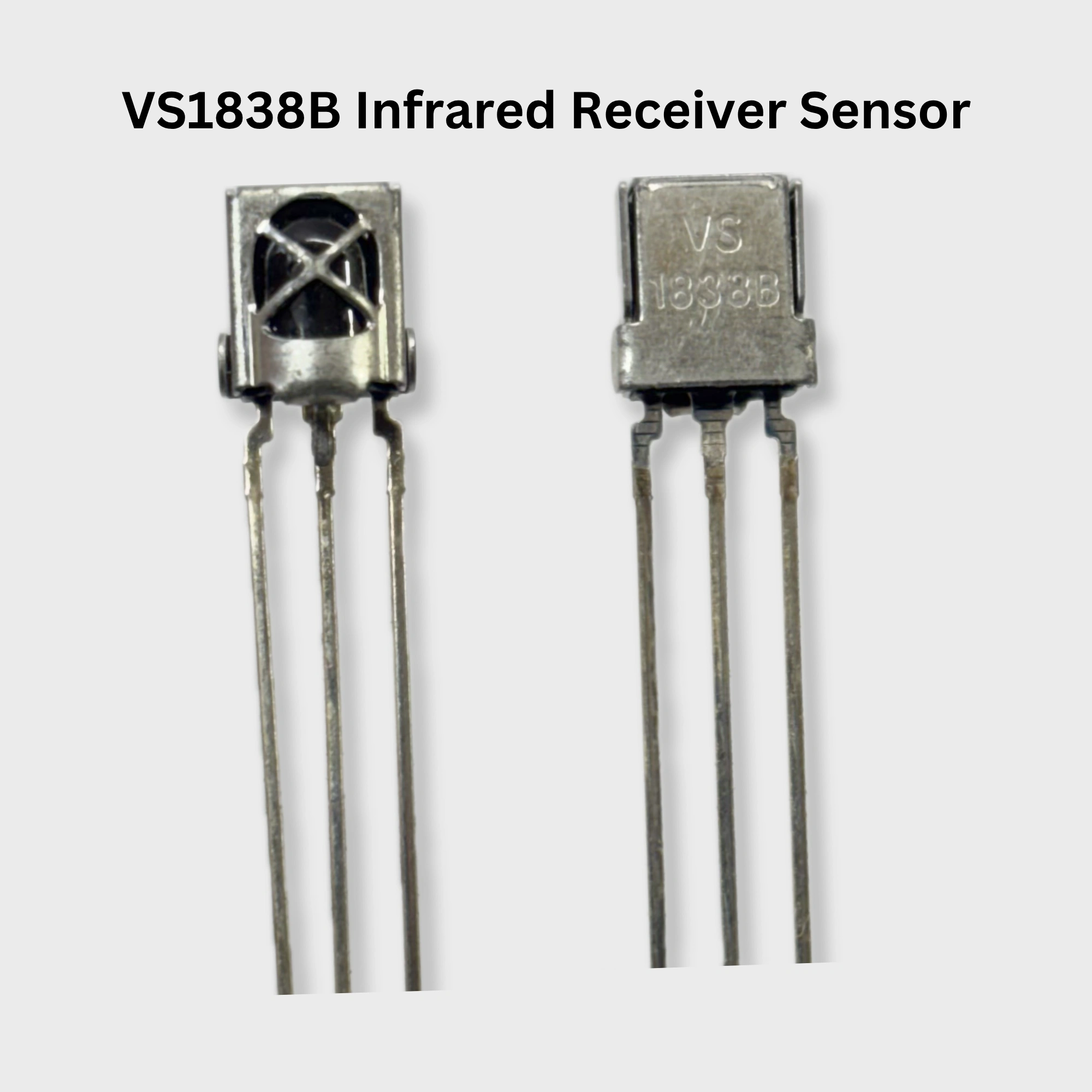

VS1838B Infrared Receiver Sensor

The VS1838B Infrared Receiver Sensor is a 38kHz IR receiver module designed to receive and decode infrared signals from standard remote controls. It integrates a PIN photodiode, preamplifier, automatic gain control (AGC), band-pass filter, and demodulator into a single package, making it ideal for Arduino, ESP32, Raspberry Pi, home automation, robotics, and remote-controlled electronics projects.

Features

• Full Name: VS1838B 38kHz Infrared Receiver Sensor
• 38kHz carrier frequency
• High sensitivity and long reception distance
• Built-in IR filter and demodulator
• Low power consumption
• Excellent immunity to ambient light and electrical noise
• TTL-compatible digital output
• Easy interface with Arduino and other microcontrollers

Specifications

Values may vary slightly depending on the manufacturer.

Pin Configuration

Note: When viewing the front of the sensor (rounded lens facing you), verify the pin order with your specific module or datasheet, as some manufacturers may arrange the pins differently.

Applications

• IR remote control decoding
• Arduino projects
• ESP32 and Raspberry Pi projects
• Home automation
• TV and media controller interfaces
• Robotics
• Wireless control systems
• DIY electronics
• Educational projects

Advantages

• High sensitivity
• Long reception range
• Low power consumption
• Built-in filtering and demodulation
• Simple 3-pin interface
• Compatible with common IR protocols (NEC, RC5, Sony, and others)
• Reliable operation in indoor environments

Size

Package Includes

• 1 × VS1838B Infrared Receiver Sensor

Note: The VS1838B is designed for 38kHz modulated infrared signals, which are used by most consumer IR remote controls. It outputs a digital active-LOW signal that can be decoded directly by microcontrollers using popular IR libraries.
