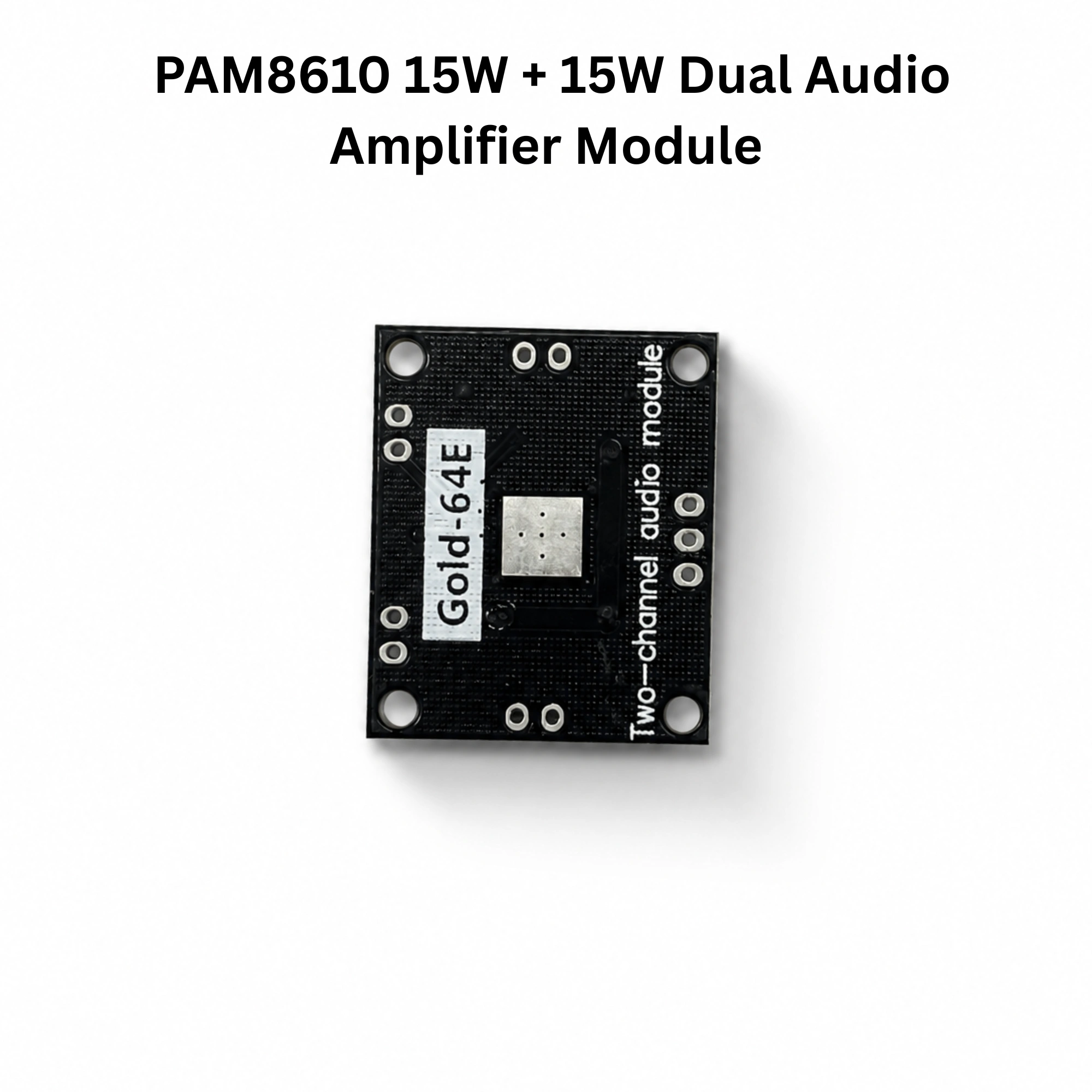

The PAM8610 15W + 15W Dual Audio Amplifier Module is a compact Class-D stereo audio amplifier board designed to deliver amplified left and right audio output with high efficiency. It is suitable for DIY speakers, portable audio systems, and other low-voltage audio projects.
Features
- Dual-channel stereo output
- Up to 15W + 15W audio output
- Class-D digital amplification
- High efficiency and low power consumption
- Compact PCB design
- Screw-terminal connections for easy wiring
- Built-in volume control interface
- Suitable for DIY and portable audio applications
Specifications
| Specification |
Details |
| Amplifier IC |
PAM8610 |
| Amplifier Type |
Class-D |
| Channels |
2 (Stereo) |
| Output Power |
Up to 15W + 15W |
| Supply Voltage |
7V–15V DC |
| Recommended Supply |
12V DC |
| Audio Input |
Left / Right |
| Audio Output |
Left / Right |
| Output Type |
BTL |
| Efficiency |
Up to ~90% |
| Volume Control |
Potentiometer compatible |
| PCB Mounting |
4 × Mounting Holes |
| Cooling |
No External Heatsink Required for Normal Use |

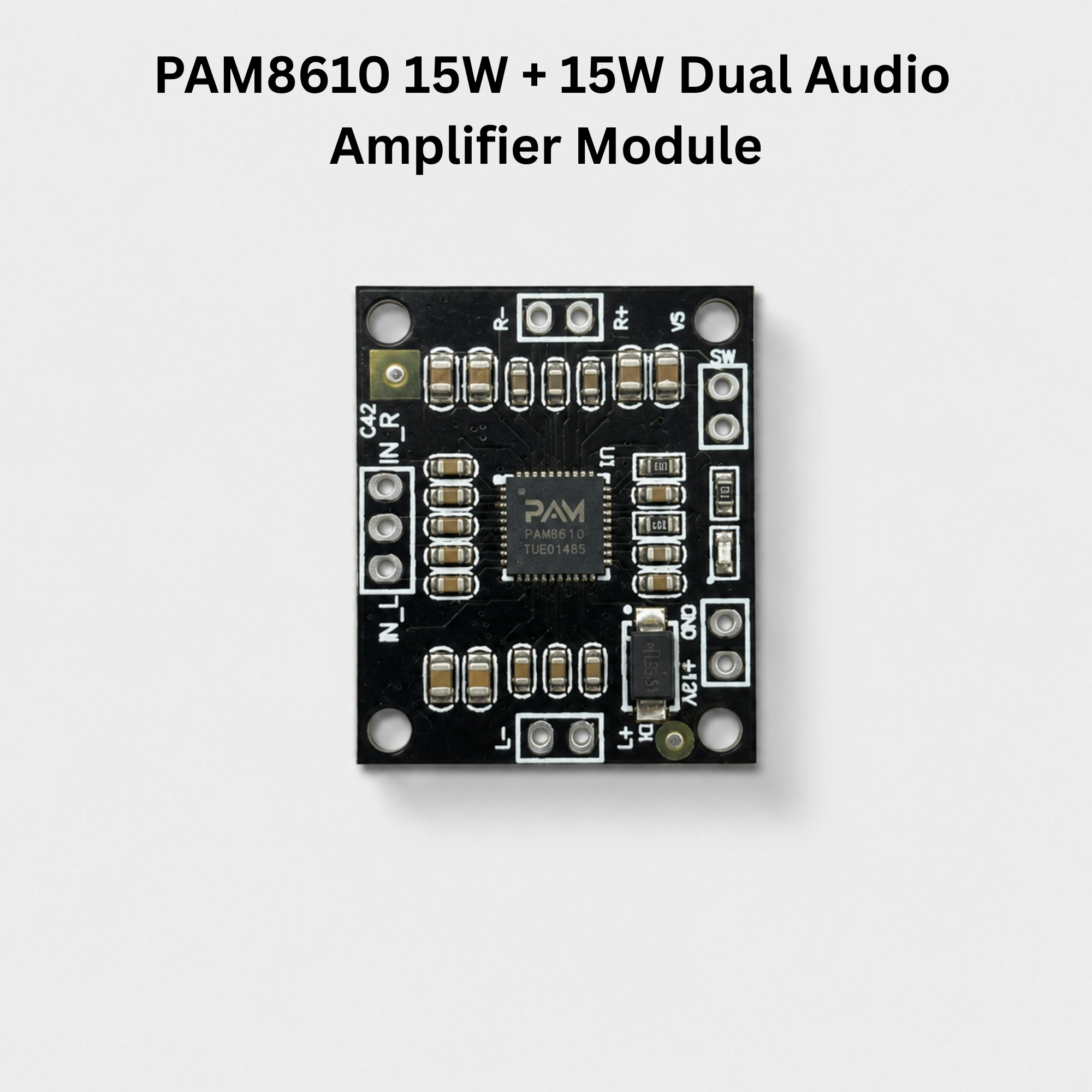

Pin / Terminal Configuration
| Terminal |
Function |
| IN-L |
Left Audio Input |
| IN-R |
Right Audio Input |
| GND |
Audio/Input Ground |
| L+ / L− |
Left Speaker Output |
| R+ / R− |
Right Speaker Output |
| +12V |
DC Power Positive |
| GND |
DC Power Negative |
| SW |
Switch / Control Connection |
Applications
- DIY Bluetooth speakers
- Portable audio systems
- Home speaker projects
- Multimedia speakers
- Arduino/audio projects
- Battery-powered sound systems
- Electronic learning projects
Advantages
- Compact and lightweight
- Efficient Class-D operation
- Stereo 2-channel output
- Simple wiring
- Low heat generation
- Suitable for portable applications
Size
Approx. 50 × 50 mm
Package Includes
- 1 × PAM8610 15W + 15W Dual Audio Amplifier Module
Note
The actual output power depends on the supply voltage, speaker impedance, and cooling conditions. Use speakers with suitable impedance and do not exceed the module’s recommended supply voltage.
