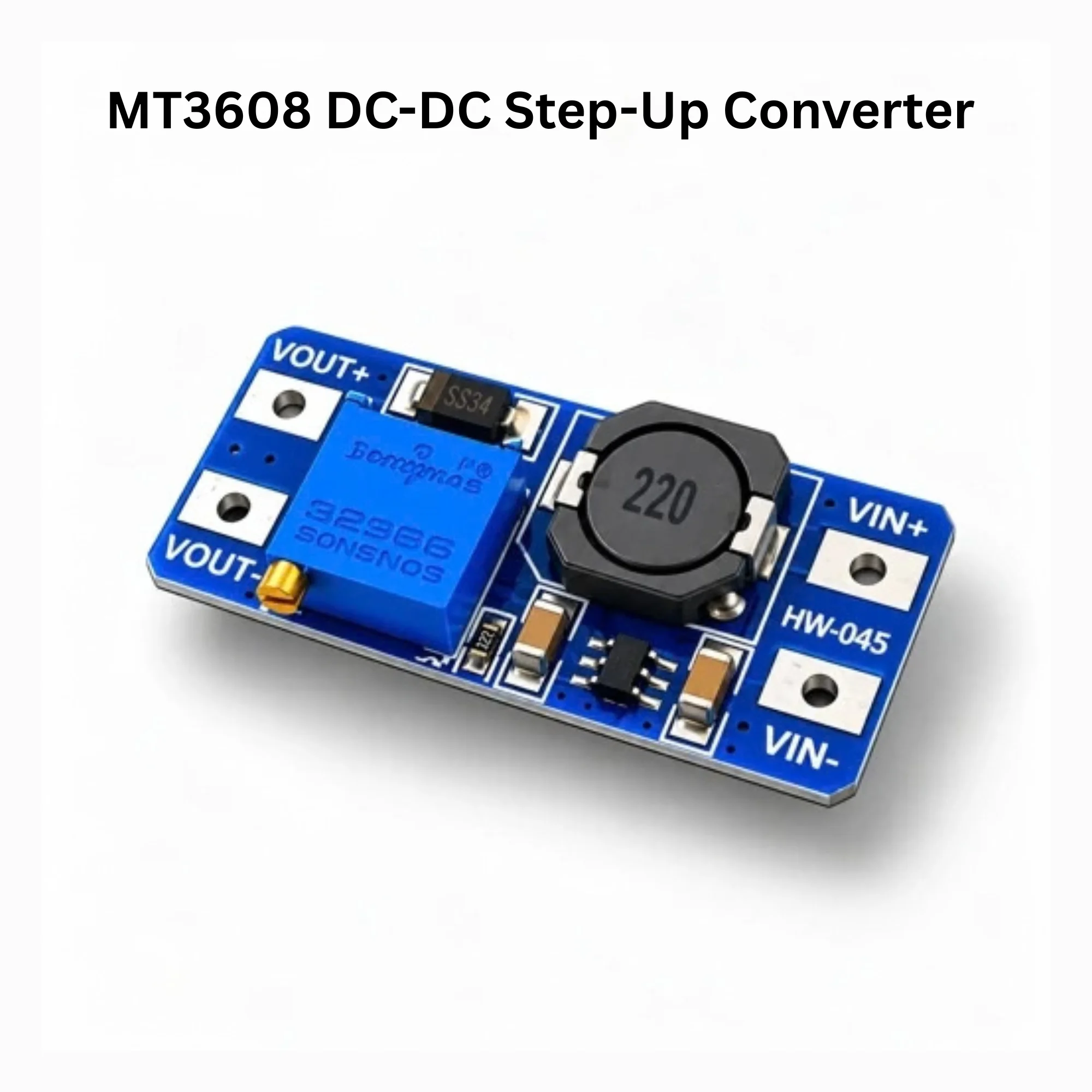

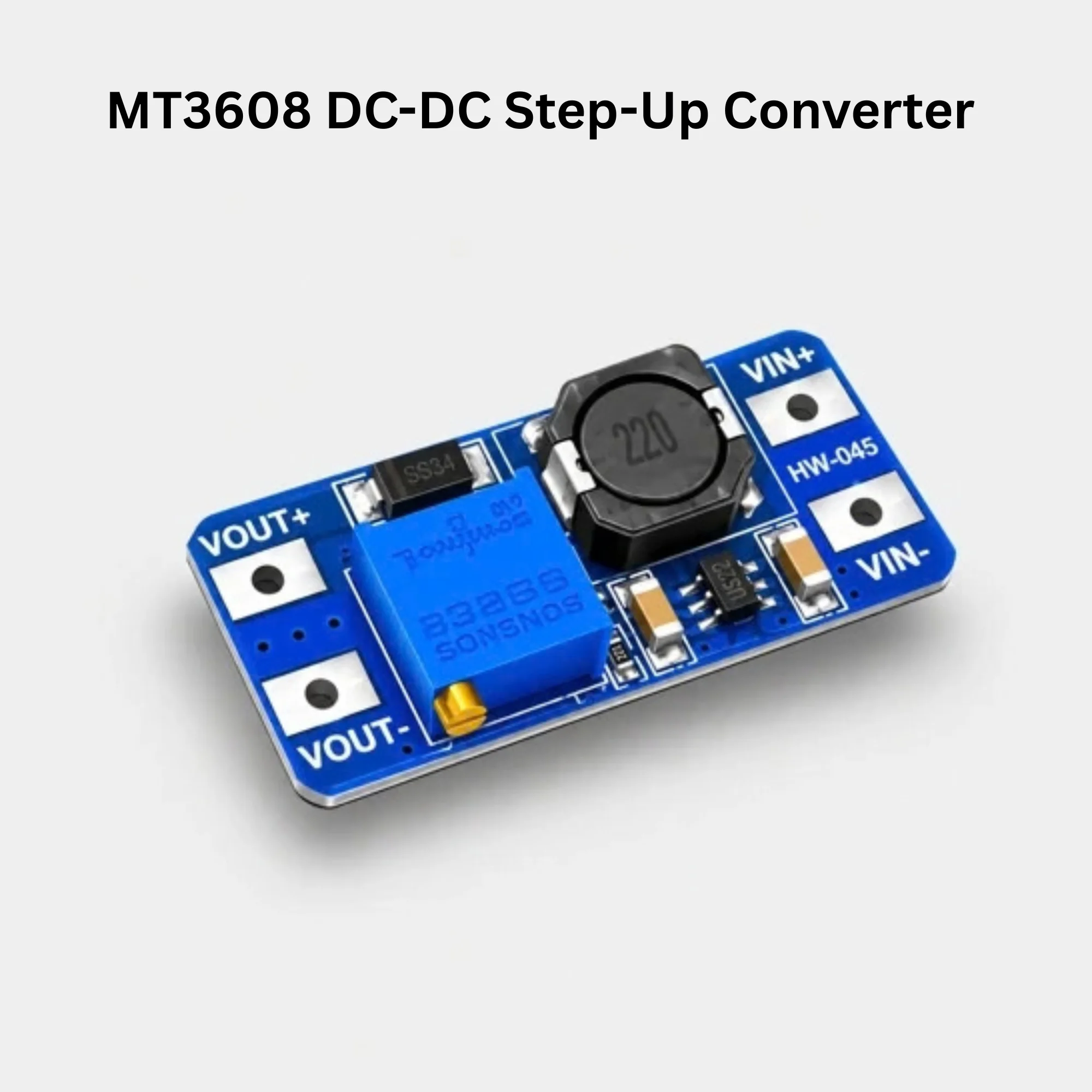

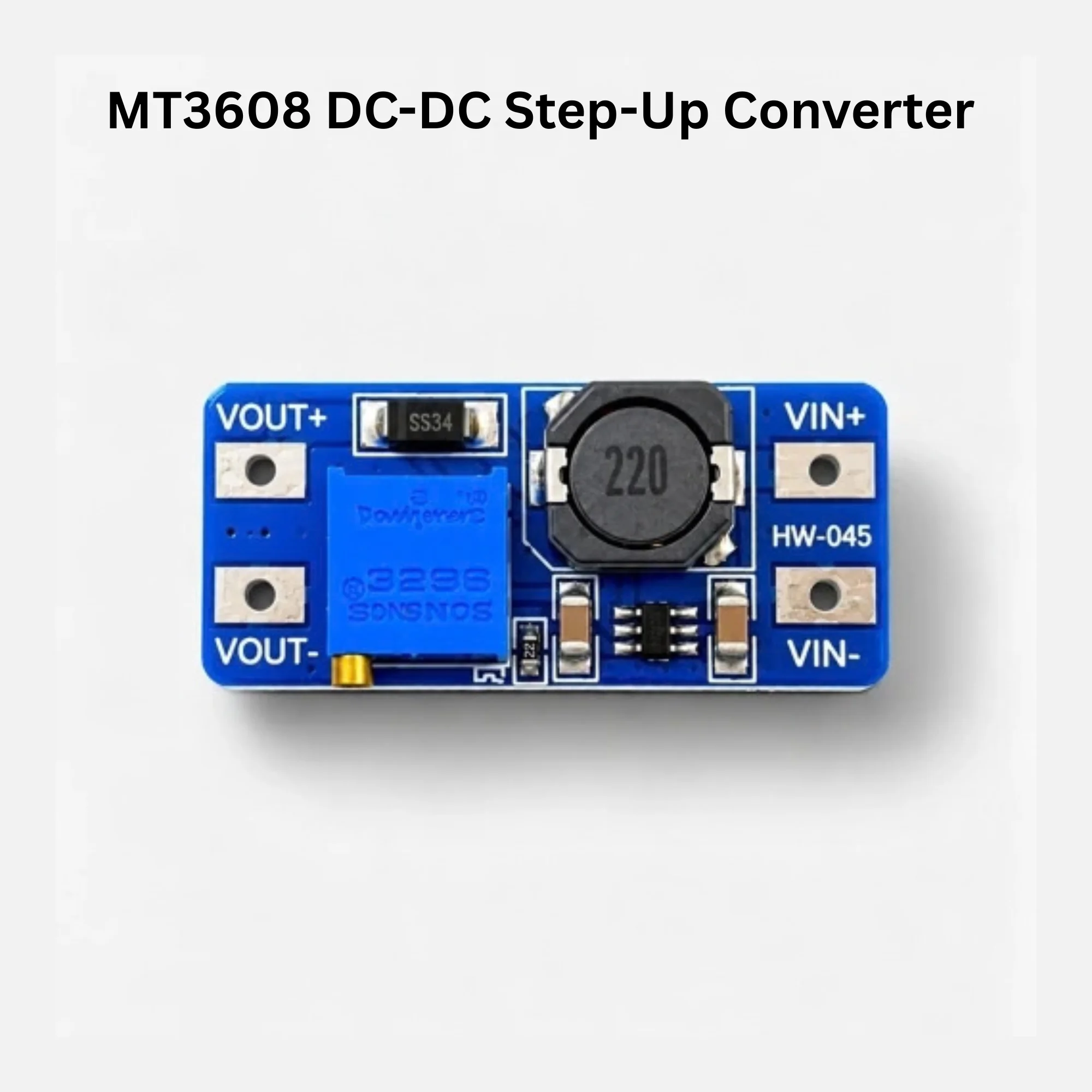

The MT3608 DC-DC Step-Up Converter is a compact boost converter module designed to increase a lower DC input voltage to a higher adjustable output voltage. It uses the MT3608 switching regulator and an onboard trimmer potentiometer to adjust the output voltage, making it suitable for battery-powered electronics and DIY projects.

Features

• Based on the MT3608 boost converter IC

• Adjustable DC output voltage

• Converts lower DC voltage to higher DC voltage

• Compact and lightweight PCB design

• Onboard inductor for switching regulation

• Trimmer potentiometer for output voltage adjustment

• Screw-free solder-pad connections for input and output

• Suitable for portable and battery-powered projects

Specifications

Terminal Configuration

Applications

• Battery-powered electronics

• DIY power supply projects

• Arduino and microcontroller projects requiring a higher supply voltage

• LED driver experiments within suitable electrical limits

• Portable electronic devices

• Sensor and module power supplies

• Small robotics projects

• Voltage boosting for low-voltage DC sources

Advantages

• Adjustable output voltage for flexible use

• Small size for compact projects

• Efficient switching-based voltage conversion

• Simple connection through clearly marked terminals

• Useful for powering circuits from low-voltage batteries

Package Includes

– 1 × MT3608 DC-DC Step-Up Converter Module

Note

This module is a step-up converter only; it cannot reduce input voltage. Adjust the output voltage with a multimeter before connecting your device. The maximum usable output current depends on the voltage conversion ratio, input supply, and cooling, so do not assume the module can deliver its maximum advertised current continuously. Never exceed the voltage or current limits of the connected device.
