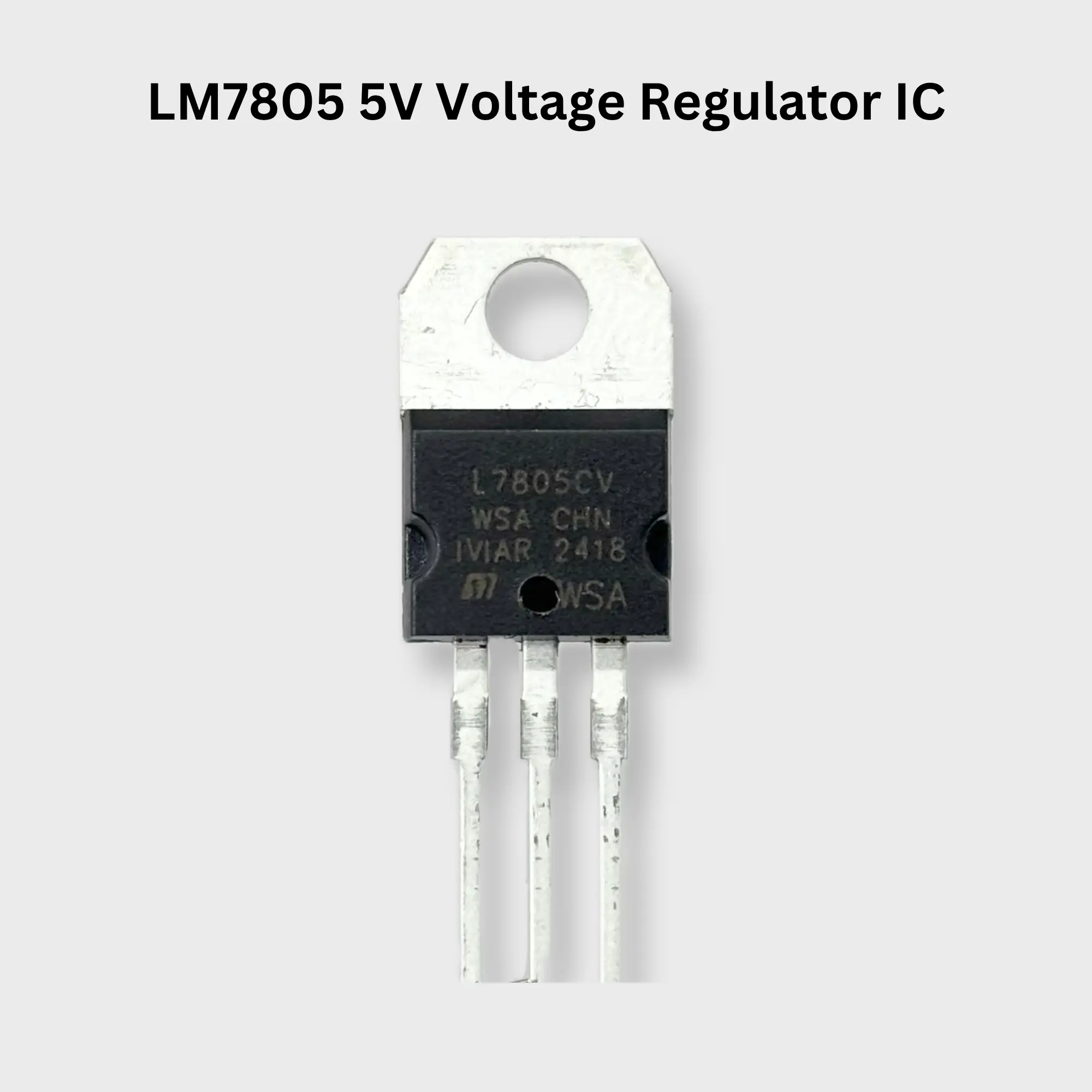

LM7805 5V Voltage Regulator IC (TO-220 Package)

The LM7805 5V Voltage Regulator IC is a three-terminal positive voltage regulator that provides a stable 5V DC output from a higher DC input voltage. It is widely used in Arduino projects, power supplies, battery-powered devices, embedded systems, robotics, and DIY electronics. The LM7805 features built-in thermal overload protection, short-circuit protection, and safe operating area protection for reliable performance.

Features

• Full Name: LM7805 5V Positive Voltage Regulator IC
• Fixed 5V regulated output
• Output current up to 1A (with proper heat sink)
• Built-in thermal overload protection
• Short-circuit protection
• Excellent line and load regulation
• Low output noise
• TO-220 package for easy mounting
• Simple three-pin design
• Reliable and durable performance

Specifications

Pin Configuration

When viewed from the front (text facing you, pins downward):

Note: The metal tab is internally connected to Ground (GND).

Applications / Uses

• 5V power supplies
• Arduino and microcontroller projects
• Battery-powered circuits
• Embedded systems
• Robotics
• LED driver circuits
• Sensor power supply
• DIY electronics
• Educational projects
• Industrial control systems

Advantages

• Stable 5V output
• Easy to use
• Built-in protection features
• Reliable performance
• Low cost
• Widely available
• Suitable for hobby and industrial applications

Size

• Package Type: TO-220
• Body Width: Approx. 10 mm
• Body Height: Approx. 15 mm
• Overall Height (with leads): Approx. 30 mm
• Lead Pitch: 2.54 mm
• Weight: Approximately 2 g

Package Includes

• 1 × LM7805 5V Voltage Regulator IC (TO-220)

Note: The LM7805 is a linear regulator, so excess input voltage is dissipated as heat. When operating with a high input voltage or supplying high current, use a suitable heat sink to ensure reliable operation.
