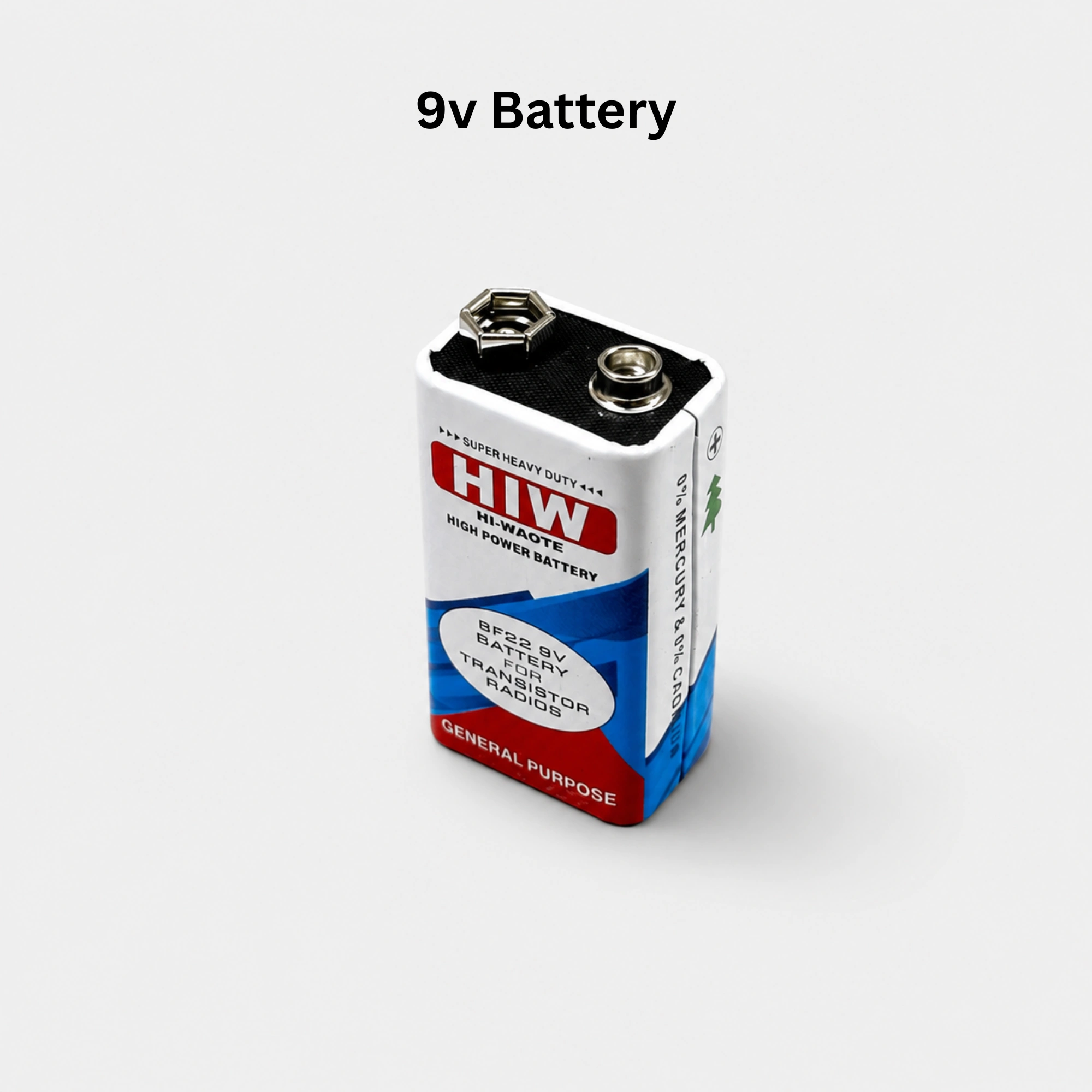

9V Battery (PP3 / 6F22)
₹15.00
- Full Name: 9V PP3 (6F22) Battery
- Standard 9V DC output
- Compact and lightweight design
- Reliable and stable performance
- Standard snap terminals
- Long shelf life
- Suitable for low-power electronic devices
- Easy to install and replace
The 9V Battery is a compact primary battery designed to provide a reliable 9V DC output for a wide range of electronic devices. Commonly known as a PP3 or 6F22 battery, it is widely used in multimeters, smoke detectors, Arduino projects, wireless microphones, alarm systems, toys, educational kits, and DIY electronics.
Features
- Full Name: 9V PP3 (6F22) Battery
- Standard 9V DC output
- Compact and lightweight design
- Reliable and stable performance
- Standard snap terminals
- Long shelf life
- Suitable for low-power electronic devices
- Easy to install and replace
Specifications
| Specification | Value |
|---|---|
| Product Type | 9V Battery |
| Battery Type | PP3 / 6F22 |
| Battery Chemistry | Zinc Carbon (Model Dependent) |
| Nominal Voltage | 9V DC |
| Rechargeable | No |
| Terminal Type | Standard Snap Connector |
| Shelf Life | Up to 3 Years (Typical) |
| Operating Temperature | 0°C to +45°C |
Terminal Configuration
| Terminal | Description |
|---|---|
| Small Snap | Positive (+) |
| Large Snap | Negative (−) |
Note: The smaller terminal is the positive (+) terminal, while the larger terminal is the negative (−) terminal.
Applications
- Arduino projects
- Breadboard circuits
- Multimeters
- Smoke detectors
- Wireless microphones
- Alarm systems
- Educational electronics
- DIY electronic projects
- Portable testing equipment
Advantages
- Ready-to-use
- Compact size
- Reliable voltage output
- Lightweight
- Easy replacement
- Widely available
- Cost-effective
Size
| Specification | Value |
|---|---|
| Dimensions | Approx. 48.5 × 26.5 × 17.5 mm |
| Weight | Approx. 35–45 g |
Package Includes
- 1 × 9V PP3 (6F22) Battery
Note: This is a non-rechargeable primary battery (unless specifically marked as rechargeable by the manufacturer). It is intended for low-current electronic devices. Do not attempt to recharge a standard zinc-carbon or alkaline 9V battery. Store the battery in a cool, dry place and remove it from devices during long periods of non-use to help prevent leakage.
