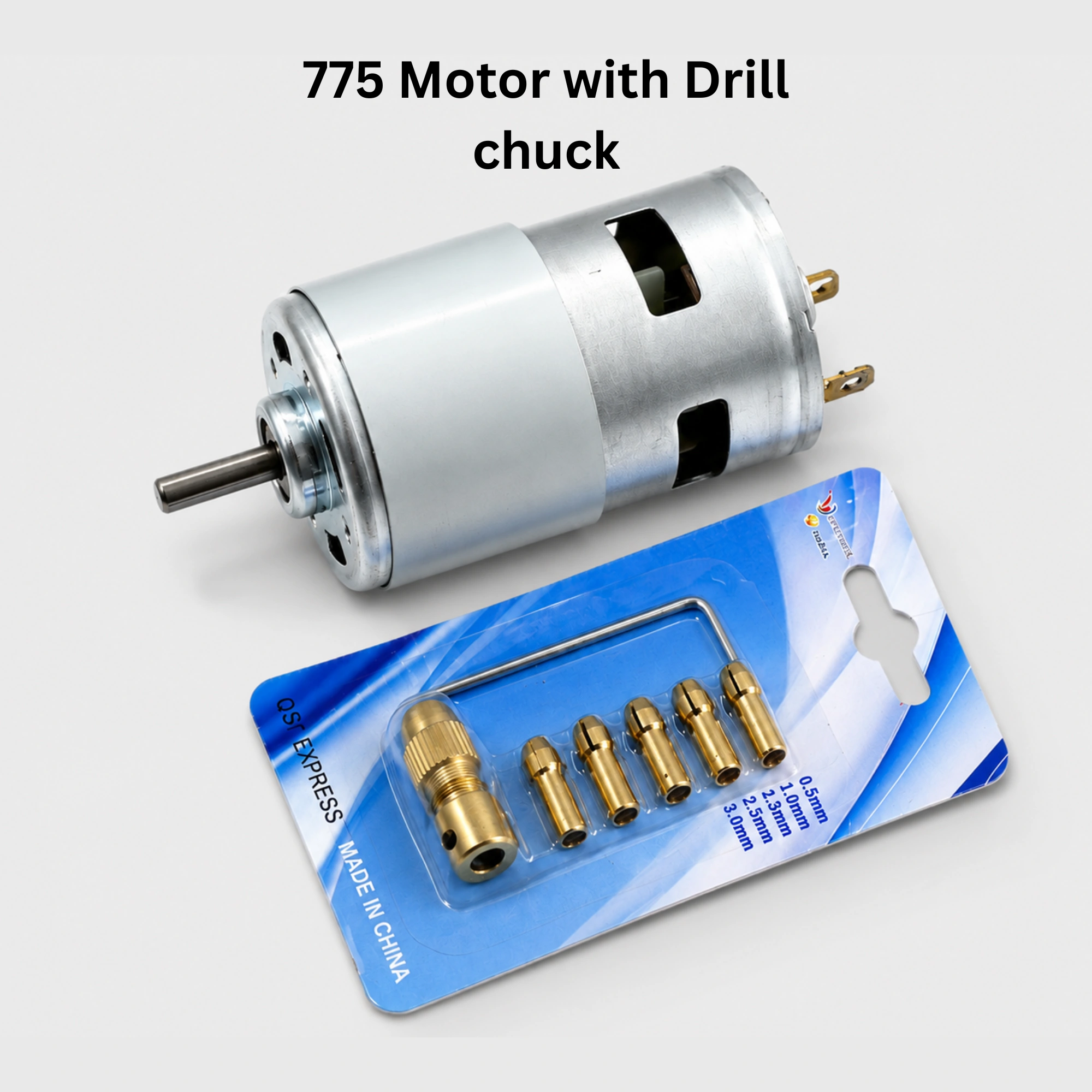

775 DC Motor with Drill Chuck Kit

The 775 DC Motor with Drill Chuck Kit is a powerful high-speed brushed DC motor equipped with a 0.3–4 mm precision drill chuck and multiple collets. It is ideal for DIY mini drill machines, PCB drilling, engraving, woodworking, model making, robotics, and hobby electronics. The motor delivers high torque and stable performance, making it suitable for a wide range of light-duty drilling and rotary tool applications.

Features

• Full Name: 775 DC Motor with 0.3–4 mm Drill Chuck Kit
• High-speed 775 brushed DC motor
• Precision drill chuck included
• Includes multiple brass collets
• High torque and stable performance
• Durable metal construction
• Easy installation
• Suitable for DIY drilling and engraving projects

Specifications

Terminal Configuration

Note: Reversing the supply polarity changes the motor’s direction of rotation.

Applications

• Mini PCB drilling machines
• DIY electric drill
• Engraving machines
• Woodworking projects
• Plastic and acrylic drilling
• Robotics
• Model making
• Educational electronics
• Hobby and DIY projects

Advantages

• High-speed operation
• High torque output
• Precision drill chuck
• Easy collet replacement
• Durable construction
• Compatible with various drill bit sizes
• Cost-effective DIY solution

Size

Package Includes

• 1 × 775 DC Motor
• 1 × 0.3–4 mm Drill Chuck
• 5 × Brass Collets
• 1 × Chuck Tightening Key / Wrench (if included, model dependent)

Note: Use a regulated 12V–24V DC power supply capable of delivering sufficient current (typically 3A–5A or more, depending on the load). Secure the motor firmly before operation, avoid prolonged stalling, and always wear appropriate eye protection when drilling or cutting.
