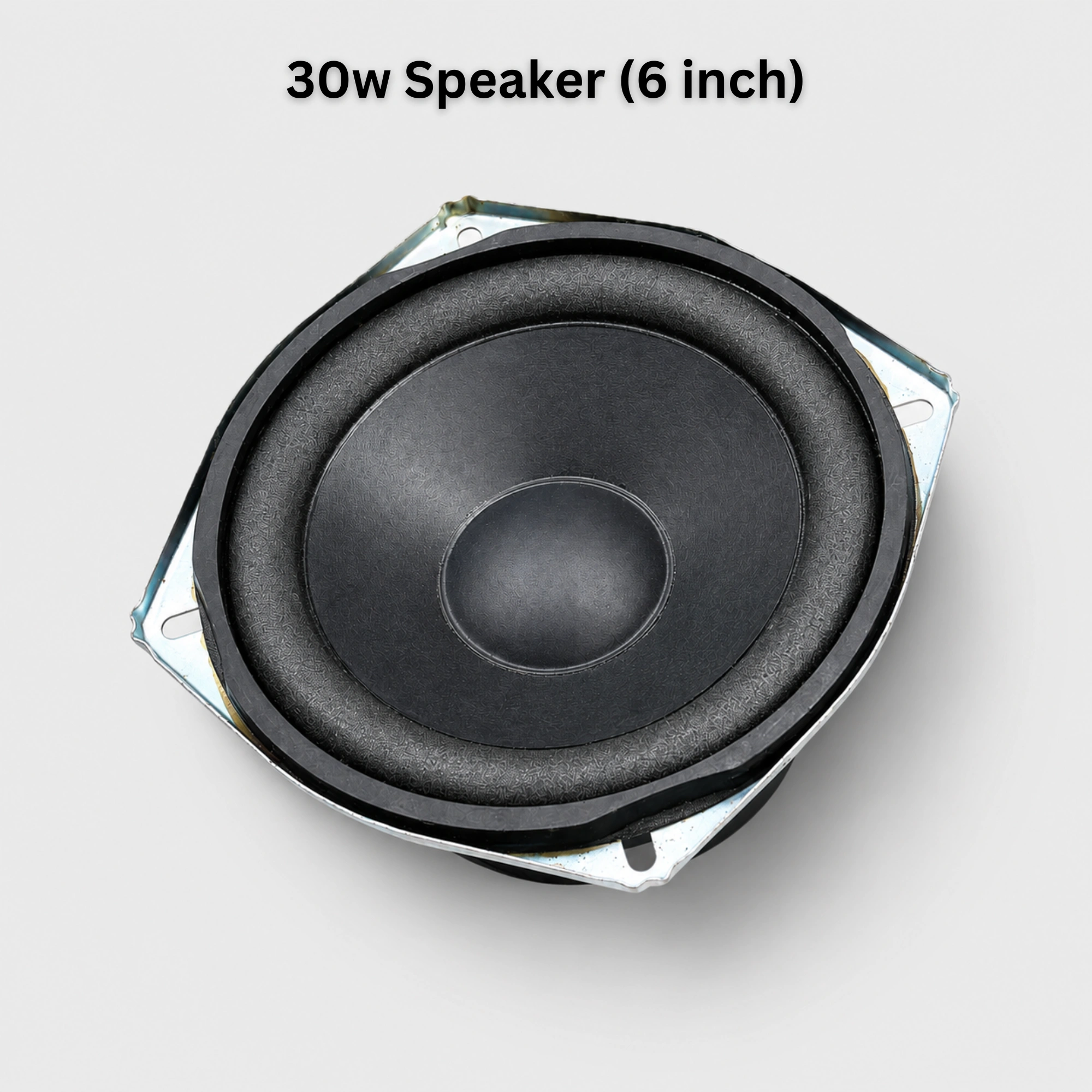

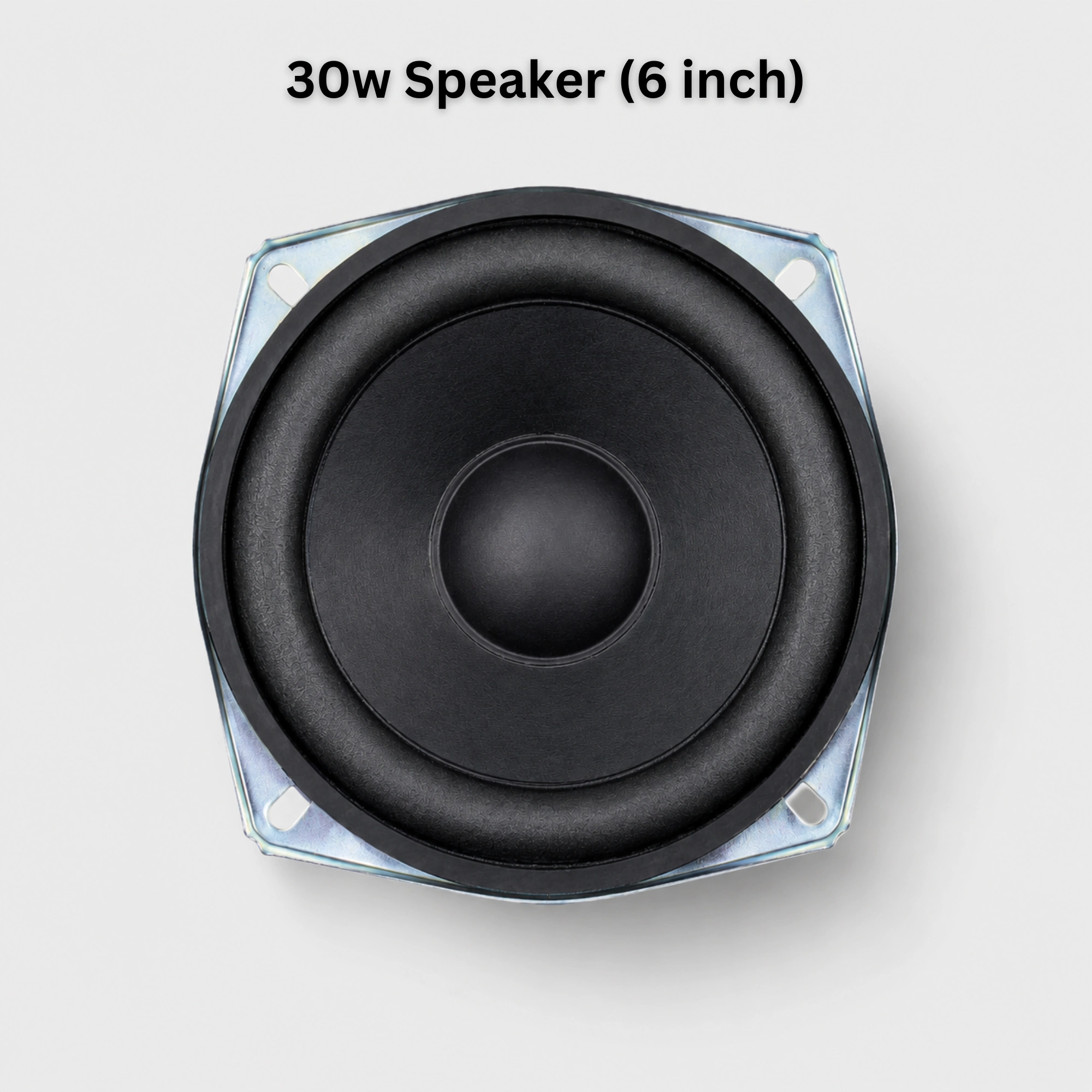

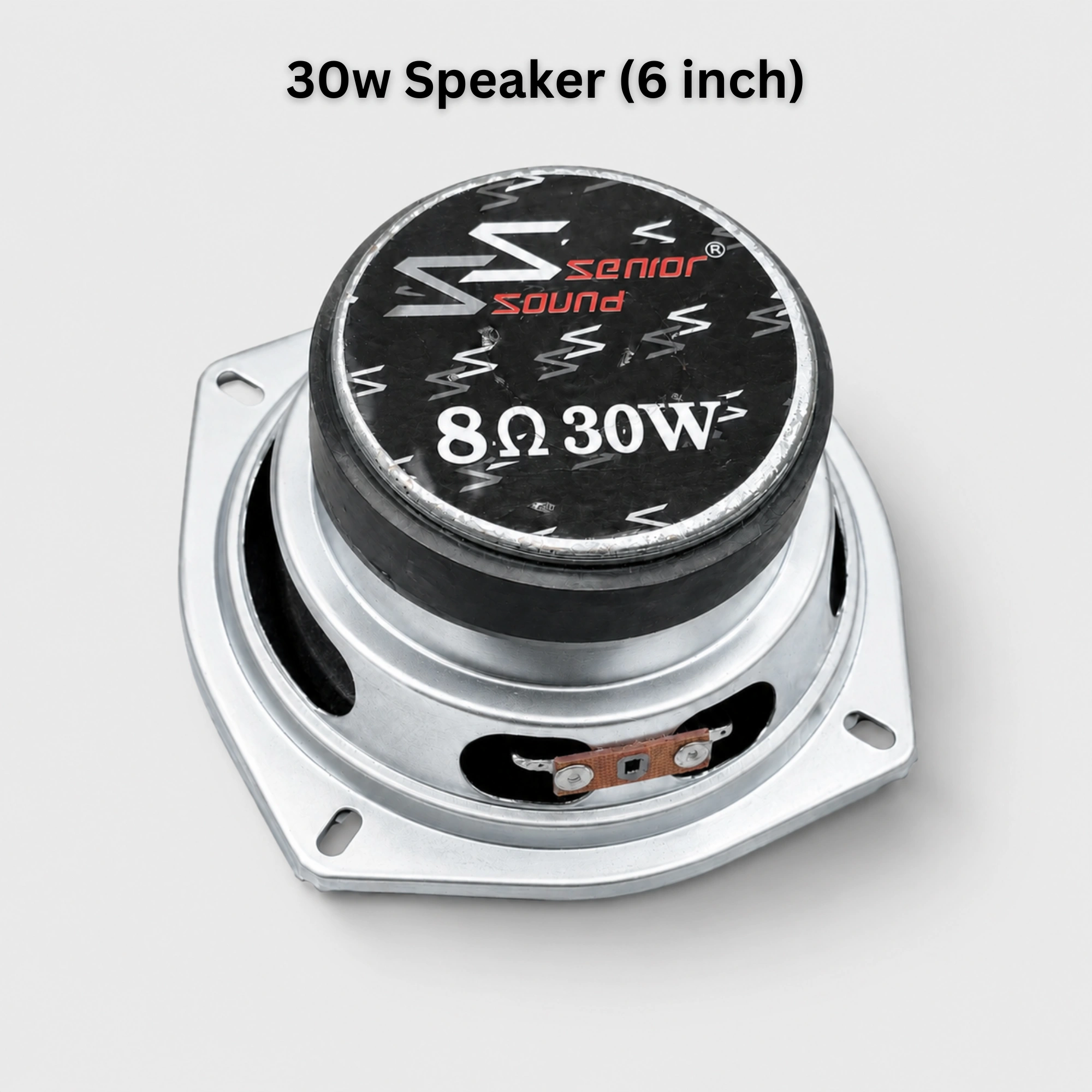

30W Speaker (6 Inch)
₹259.00
- Full Name: 30W 6-Inch Full-Range Speaker
- High-quality full-range audio output
- Clear vocals with enhanced bass response
- Durable paper cone with foam surround
- Strong ferrite magnet
- Low distortion sound
- Easy to install
- Compatible with most audio amplifiers
The 30W Speaker (6 Inch) is a high-quality full-range loudspeaker designed to deliver clear sound, deep bass, and balanced audio performance. It is suitable for home audio systems, Bluetooth speakers, DIY amplifier projects, multimedia systems, PA systems, and educational electronics projects. Its robust construction and efficient design make it an excellent choice for both hobbyists and professionals.
Features
- Full Name: 30W 6-Inch Full-Range Speaker
- High-quality full-range audio output
- Clear vocals with enhanced bass response
- Durable paper cone with foam surround
- Strong ferrite magnet
- Low distortion sound
- Easy to install
- Compatible with most audio amplifiers
Specifications
| Specification | Value |
|---|---|
| Product Type | Full-Range Speaker |
| Speaker Diameter | 6 Inch (Approx. 152 mm) |
| Rated Power | 30W RMS |
| Peak Power | 60W (Typical) |
| Impedance | 4Ω / 8Ω (Model Dependent) |
| Frequency Response | 80Hz – 18kHz (Typical) |
| Sensitivity | Approx. 88 dB ±3 dB |
| Magnet Type | Ferrite |
| Cone Material | Paper Cone |
| Surround Material | Foam |
Terminal Configuration
| Terminal | Description |
|---|---|
| Positive (+) | Positive Speaker Terminal |
| Negative (−) | Negative Speaker Terminal |
Note: Connect the speaker terminals to the amplifier with the correct polarity to maintain proper phase and achieve the best audio quality.
Applications
- DIY Bluetooth speakers
- Home audio systems
- Audio amplifier projects
- Multimedia speakers
- Portable speaker systems
- Public address (PA) systems
- Educational electronics
- Hobby audio projects
Advantages
- Clear and balanced sound
- Good bass performance
- Durable construction
- Easy installation
- High efficiency
- Compatible with a wide range of amplifiers
- Cost-effective
Size
| Specification | Value |
|---|---|
| Speaker Diameter | Approx. 6 Inch (152 mm) |
| Mounting Depth | Approx. 60 mm |
| Mounting Hole Diameter | Approx. 145 mm |
| Weight | Approx. 500 g |
Package Includes
- 1 × 30W 6-Inch Full-Range Speaker
Note: Use this speaker with an amplifier that matches its impedance (4Ω or 8Ω) and 30W RMS power rating. Using an amplifier with excessive output power or prolonged distortion at high volume may damage the speaker.
