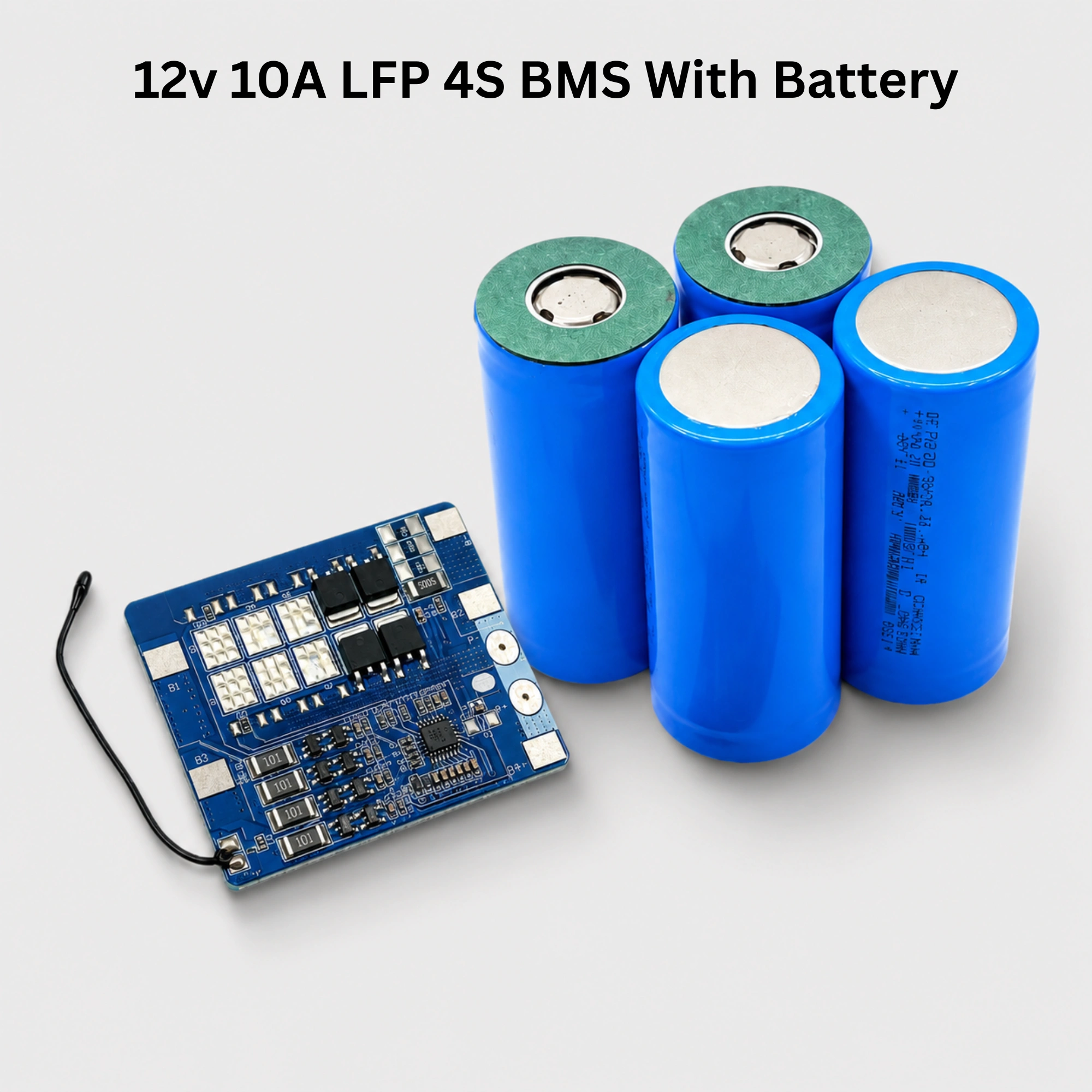

12V 10A LiFePO₄ 4S BMS with Battery Pack

The 12V 10A LiFePO₄ 4S BMS with Battery Pack is a complete 12.8V rechargeable battery solution that includes four 3.2V LiFePO₄ cells and a 4S 10A Battery Management System (BMS). The integrated BMS provides overcharge, over-discharge, overcurrent, short-circuit, and cell balancing protection, making it ideal for solar energy storage, UPS systems, robotics, LED lighting, portable power supplies, DIY battery packs, and backup power applications.

Features

• Full Name: 12.8V 10A 4S LiFePO₄ Battery Pack with BMS
• Includes four 3.2V LiFePO₄ cells

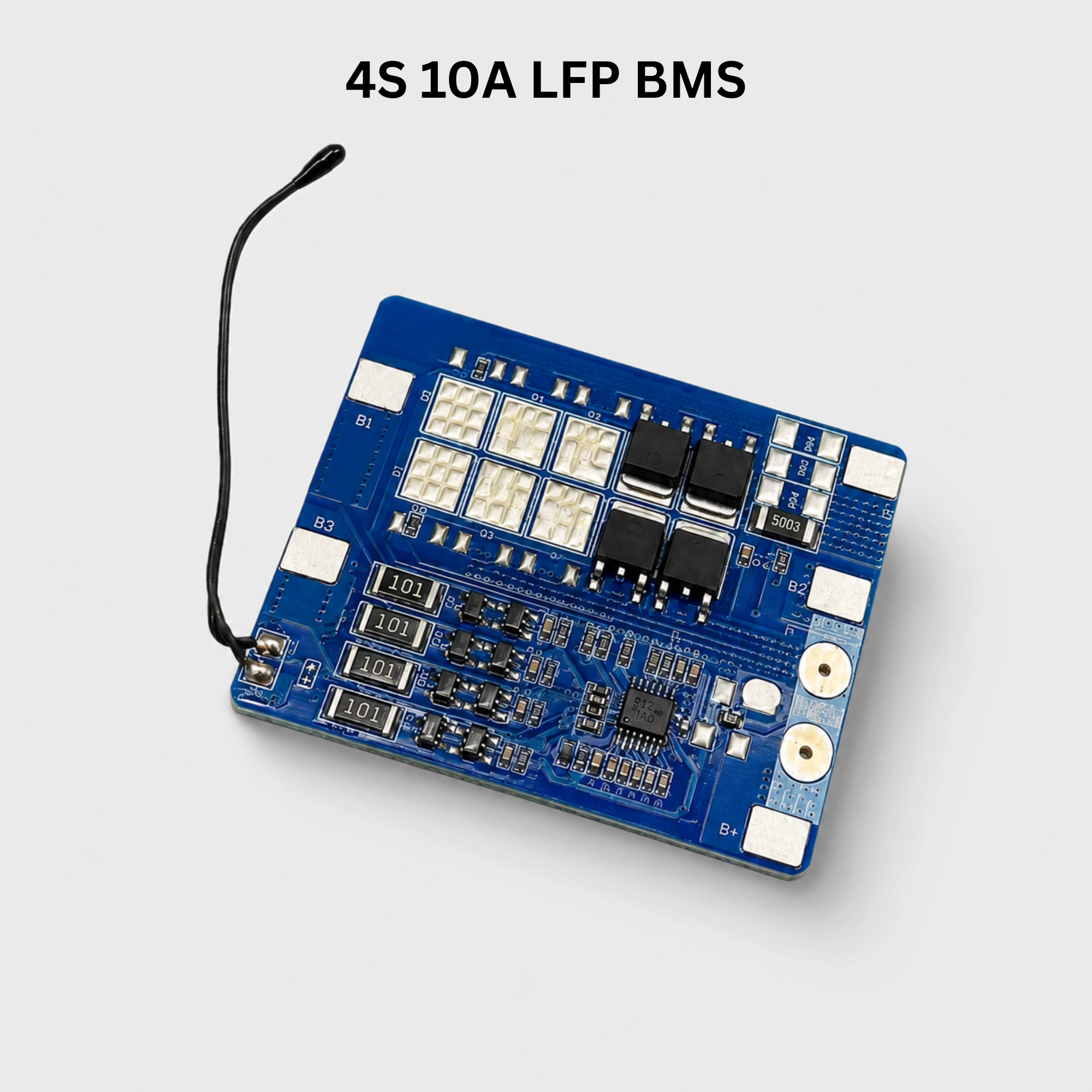

• Integrated 4S 10A BMS protection board
• Built-in cell balancing
• Long cycle life (up to 2000+ cycles)
• High safety and thermal stability
• Lightweight and maintenance-free
• Ready for custom battery pack assembly

Specifications

BMS Connection

Note: Connect the balance wires in the correct order (B− → B1 → B2 → B3 → B+) before connecting the charger or load.

Applications

• Solar energy storage
• UPS and backup power systems
• Portable power stations
• LED lighting systems
• Robotics
• Electric scooters and mobility devices
• DIY battery packs
• Camping power supplies
• Educational electronics projects

Advantages

• High safety compared to standard Li-ion batteries
• Long service life with thousands of charge cycles
• Stable output voltage
• Built-in battery protection
• Low maintenance
• Lightweight and reliable
• Excellent thermal stability

Size

Package Includes

• 4 × 3.2V LiFePO₄ Rechargeable Battery Cells
• 1 × 4S 10A LiFePO₄ BMS Protection Board

Note: This kit is designed only for 4S LiFePO₄ (12.8V nominal) battery packs. Use a 14.6V LiFePO₄ charger for charging. Do not use chargers intended for Li-ion/Li-Po (12.6V) battery packs, as they are incompatible. Ensure all wiring is correct before connecting the battery, BMS, charger, or load to ensure safe and reliable operation.
